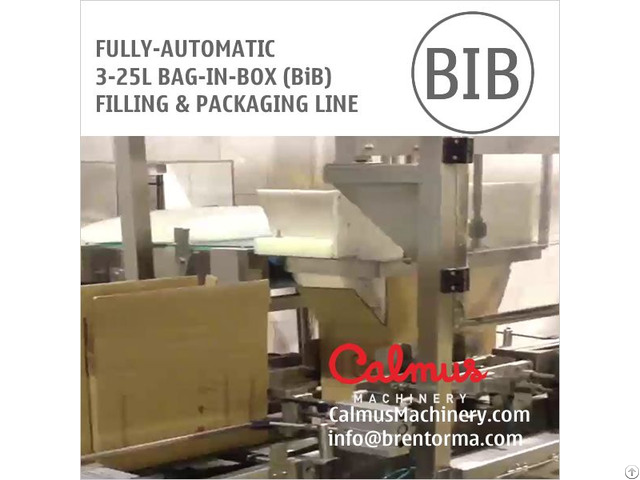

Fully Auto 3 25l Bib Filling Machine Bag In Box Packaging Line - China

Fully-automatic Bag-in-Box (BiB) Filling and Packaging Line The Fully-automatic Filling and Packaging Line includes:

1 - Fully-automatic Bag-in-Box Filling Machine

2 - Hot-Melt Glue Carton Erector

3 - Bag Inserter

4 - Hot-Melt Glue Box Sealer

5 - Conveying Systems The whole line is fully-automatic.

Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts.

World famous brands of key components and many are imported.

Made in China, but built at high quality level.

Procedures of the whole line:

1) Automatically feed bags.

Bags Feeding of Bag-in-Box Filling and Packaging Line BIBFPL600 2) Automatically pull cap, fill, cap and cut bags apart.

Bag Filling of Bag-in-Box Filling and Packaging Line BIBFPL600 3) Automatically erect cartons and seal bottoms with hot melt glue.

Carton Erecting of Bag-in-Box Filling and Packaging Line BIBFPL600 4) Automatically insert filled bags in boxes.

Bag Inserting of Bag-in-Box Filling and Packaging Line BIBFPL600 5) Automatically seal the box tops with hot melt glue.

Box Sealing of Bag-in-Box Filling and Packaging Line BIBFPL600 1 - Fully-automatic Bag in Box Filling Machine

The Fully-automatic Bag in Box Filling Machine is designed for filling spouted bags with a wide range of liquids like drinking water, post mix syrup coke, edible oil and beverage.

It features fully-automatic by employing PLC and touch screen control system.

The whole process of continuous bags feed, decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required.

This filling machine can cap various spigots including Vitop and Scholle's.

It is designed with CIP (Clean in Place) function and pipeline connection.

Grade 304 stainless steel body and 316L stainless steel fluid-contact parts.

Features:

1) Fully-automatic, WEB type bags fed.

2) Easy to use.

The touch-screen control system makes operation easy.

3) An electromagnetic or turbine flowmeter employed improves filling precision and truly achieves the quantitative filling.

4) An air filter employed brings clean air to the filling space.

5) Grade 304 stainless steel body and 316L stainless fluid-contact parts.

6) Filling a different capacity bag acceptable only by changing the setting.

7) Options of vacuumization and nitrogen injection available for specific products use.

Specifications:

Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 3-25 litres.

(Spout is called Gland or Flange too.

)

Filling capacity:

450-510 bags/hour for 5 litres

360-400 bags/hour for 10 litres

250-270 bags/hour for 20 litres

Power: 1.0 kW

Compressed air: 6-8 bar, 500 NL/min 2 - Carton Erector (Erecting carton and sealing bottom)

Erecting capacity: 6-7 cartons/min

Hot Melt Glue System: Nordson 3 - Bag Inserter (Inserting filled bags in cartons)

Inserting capacity: 15 bags/min

Grade 304 stainless steel body 4 - Hot Melt Glue Box Sealer (Closing and sealing top)

Sealing capacity: 10 cartons/min

Hot Melt Glue System: Nordson 5 - Conveying Systems

Grade 304 stainless steel
