Fill Pack Water Filling Machine For Sale - China

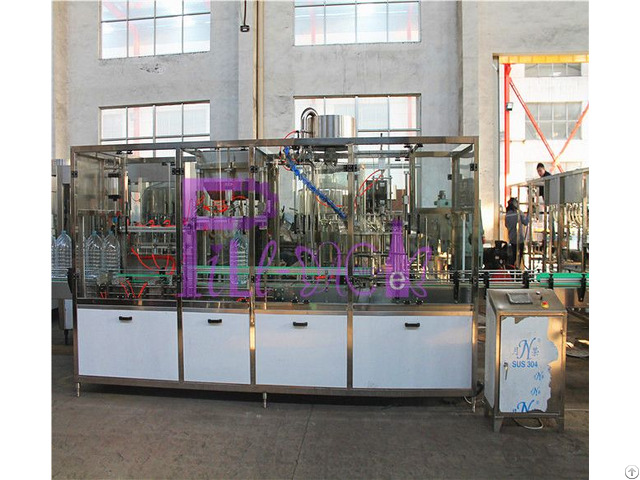

Title: Linear pheumatic water filler for 3-10L big water bottles

Key words: water filler, water bottling machine, water bottling system

QUICK DETAILS:

Model: CGF4-4-1

Brand: FILL-PACK

Power: 2.25kw

Voltage: 380V 3PH 50HZ or customized

Driven force type: Electrical-Pheumatic

Automation degree: Automatic

Dimension: 4100*1200*1970mm

Weight: 950kg

Application: water

Packing category: Bottles

Packing material: PET

Condition: New

FILL-PACK water bottling equipment

PROPERTIES:

Capacity: 0-600 BPH (5L)

Applicable bottle size: 0-10L

Applicable cap category: Flat screw cap

Key material: SUS304

Fuction: bottle rinsing-filling-sealing-t ransferring

Processing liquid: water

Filling precision: +/- 1mm

Origin: ZhangJiaGang, China

After sales service: Engineers avaliable to service overseas

Qualification: CE, ISO9001-2008

The empty bottles will be sent to washer through belt conveyor, 4 bottles per shift, each 4 bottles will be calculated and stopped by sensor-cylinder, and 4 bottles will be clamped by clamps at holding neck positions; The bottles will be reversed for bottle rinsing; Rinsing time and rinsing water capacity is adjustable; The washed bottles will be sent to filler by conveyor, Block cylinder block 4 bottles in filler conveyor; push cylinder will push bottles under filler, lift cylinder will take bottles to filler heads, open filling value, filling start.

The filling is gravity filling; it is easy to control precision.

After this process, the bottles will be returned back to conveyor by reverse repeat.

Advanced design for the FILL-PACK Drinking water filling machine

1, East for changing bottles within minutes;

2, Flowmeter is the heart of the machine, is with special design, it can do correct filling, no need cleaning;

3, Strong point of the machine is the machine can fill liquid and also semi-liquid.

4, Easy filling volume change by PLC –touch screen;

5, Capacity is selective;
