Double Chip Automatic Four Servo Stitching Machine - China

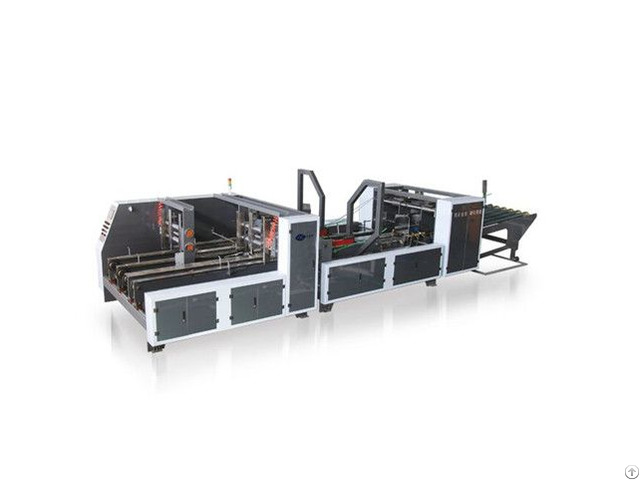

Double chip automatic four servo stitching machine

Carton stitching machine

Automatic carton stitching machine The machine specification: The max.

paper size(A+B)*2(mm) 1600

The min.

paper size(A+B)*2(mm) 1100

The max.

carton length 550

The min.

carton length 400

The max.

carton width 400

The min.

carton width 250

The max.

paper height 1000

The min.

paper height 500

The max.

rock cover 300

The min.

rock cover 50

The max.

height 900

The min.

height 400

The max.

width of the tongue 35-40

Nailing distance 30-120

Number of nails 2-99

Stitching speed 600

weight 4

The main configurations and features

The main configurations and features:

1 - The automatic nail box machine after the paragraph with the function of automatic counting, finished cartons can be set according to the number(2-99)sub stack sent to the conveying machinery terminal, convenient bundling.

2 - The automatic nail box machine to sent the front automatic counting paper, feeding flat is equipped with photoelectric sensor, it can rise up automatic when feeding paper.

3 - The back has mould turnover function(optional).

4 - Machine speed: 600nails/min.

5 - A dual-purpose can nail a monolithic ground nail carton, twin sheet nail carton, irregular box.

6 - It can nail strengthening nails, single, double screw once completed.

7 - We send automatic counting paler, finished sending strapping.

8 - It is suitable for middle and small carton, rapid and labor-saving stapler.

9 - The adjusting nail spacing, the use of computer automatic nail margin setting, nail spacing 20-120mm adjustable.

10 - The machine adopts computer screen display the fault description.

11 - Automatic wire feed system, no alarm, 20KG grail flat wire, to save time.

12 - The suitable for the three layer, five layer corrugated paper, the seven layer(seven layer need special instructions).

13 - It can nail a lid box & carton no cover(no cover box to nail in the case of ordering machinery must be noted when).

14 - The machine adopts four servo motor(two head motor and two screw pitch control motor).

15 - The whole machine electric isolation transformer protection device.

16 - The type of nailing: this machine is the default for the oblique nail, nail can also double nail straight(when ordering machine indicate).

Double or single straight screw/straight to strengthen nails.
