Case Erector And Bag Inserter For Forming Lined Carton - China

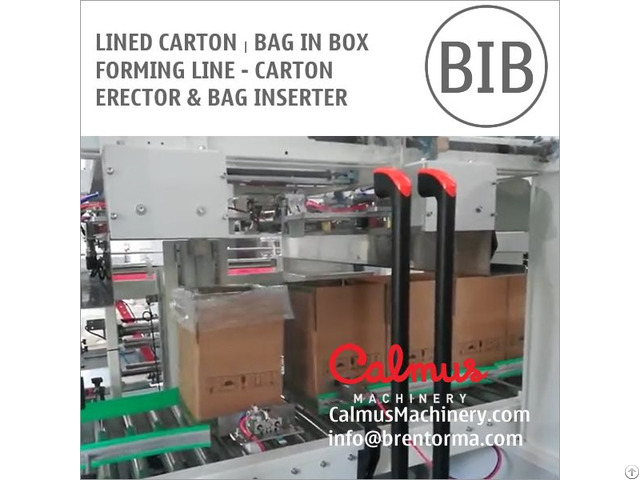

Case erector and bag inserter.

This lined carton forming line erects cases and seals bottoms, inserts poly bags in cases by one each from a roll stock film, opens and cuffs the bag over the case flaps, blows air to extend the bags to fit on the internal wall of cases better to form lined cases ready for filling products.

This line includes a case erector and a poly bag inserter (also called case lining machine).

1 - Case Erector

Called carton erector as well.

It erects case, folds and seals bottoms with tape or hot-melt glue.

Specifications: Erecting type: vertical or horizontal.

Sealing media: tape

Erecting capacity: max.

10 cartons/min or 25 cartons/min (depends on the carton size) Applicable case dims: 410mmW/2+H>310mm

Applicable tape width: 4.8-7.2cm

Power supply: single phase, 400 W/1.5kW

Compressed air: 6 bar

Fold-flat case storage: 50 pcs (depends on the thickness of fold-flat carton) 2 - Poly Bag Inserter

Also called Case Lining Machine or Liner Placer.

This poly bag inserter inserts a poly bag in a case from a roll stock film, open and cuff the bag over the case flaps, blow air to expand the bag to fit on the internal wall of case better.

The bag inserter reduces labor and material costs, is simple to operate and easy to adjust.

High efficiency and labor saving.

Specifications: Inserting capacity: 6-7 cartons/min

Film width: 460-840mm

Applicable case dims: L250-550*W200-400*H150-40 0mm, also can be customized

Power supply: 3 phase, 4.5 kW

Air consumption: 100 NL/min

Machine dims: L3, 322*W2, 177*H2, 350mm (for reference only)
