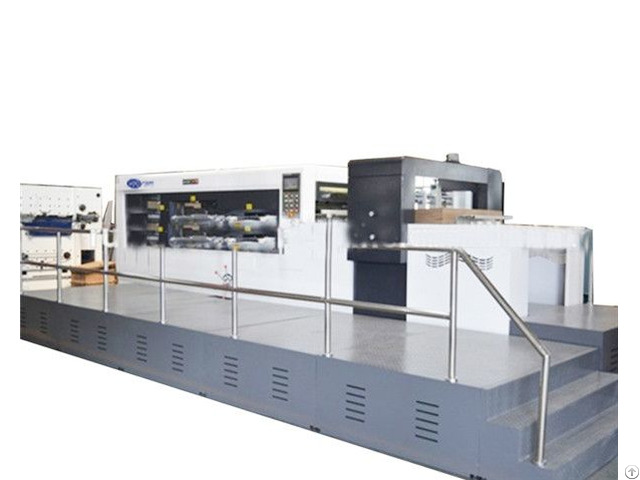

Automatic Die Cutting And Creasing Machine With Stripping - China

Model UD1-1060 UD1-1080 UD1-1100

Max.

paper size 1060*750mm 1080*780mm 1100*780mm

Min.

paper size 400*350mm 400*350mm 400*350mm

Max.

die-cutting size 1050*730mm 1070*760mm 1080*760mm

The minimum size in mouth 5mm 5mm 5mm

Max.

die-cutting pressure 350N/cm2 350N/cm2 350N/cm2

cardboard 200-2000g/m2 ≤6mm 200-2000g/m2 ≤6mm 200-2000g/m2 ≤6mm

Corrugated paper Max.

die-cutting speed 7000sheets/h 7000sheets/h 7000sheets/h

Max.

feeding pile height 1000mm(above the level) 1100mm(above the level) 1100mm(above the level)

Max.

collecting pile height 1000mm(above the level) 1100mm(above the level) 1100mm(above the level)

Total power 13.5KW 15KW 17KW

Weight 15T 16T 16T 17T 17T 18T

(stripping) Dimensions 5600*2170*2245 7100*2170*2245 5700*2170*2245 7200*2170*2245 5800*2170*2245 7300*2170*2245

1 - Equipped with pneumatic clutch and pneumatic locking plate

2 - Lead form feeding paper.

The high-speed and high precision paper feeding device can transmit all kinds of corrugated paper whenever how the quality of paper is.

Equipped with light-adjusted device and has suitable ability.

3 - Automatic adjusting paper feeding, paper collecting and paper aligning.

4 - Semi-automatic gripper type equipped the tooth row, open bite adjustable, under the help of paper, cardboard can run smoothly.

Automatic suction suck about using leading edge of paper, tooth row gripper-style, curved cardboard and tissue paper can also be passed no scratches.

5 - Pneumatic take samples when machine working, can check the die cutting effect at any time.

6 - Dusting air guns, can effectively remove the template, and dust inside the device.

7 - Automatic lubricating can add lubricating oil on the chain gear according to time, extended the working life of machine.

8 - Using alarm bells agencies in warning tone when the device is turned to raise safety warning.

9 - Equipped with a precision of detection (Taiwan Riko) fiber optic switch, the paper is in place to detect and avoid paper waste.
