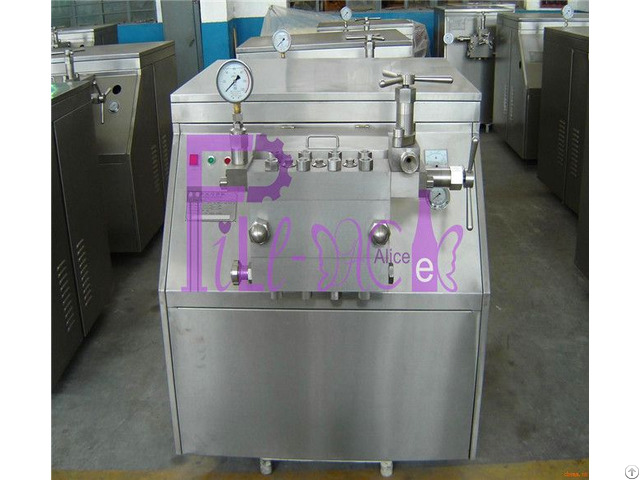

3000l H 2 Stage Homogeniser For Juice And Dairy Products - China

Key words: homogenizer, Model: JJ-3-25

Brand: FILL-PACK

Power: 22kw

Voltage: 380V 3PH 50HZ or customized

Driven force type: Electrical

Automation degree: automatic

Application: juice homogenization

Condition: New PROPERTIES:

Volume: 3000L

Key material: SUS304

Fuction: juice homogenization

Stage: 2

Working pressure: 25Mpa

Motor power: 22Kw

Inlet/outlet: 25mm

Origin: ZhangJiaGang, China

After sales service: Engineers avaliable to service overseas

Qualification: CE, ISO9001-2008

Special ceramic material homogenization valve

the materials are composed of various pottery and porcelain, which suit for rubbing rigid products, cobalt chromium tungsten alloy and tungsten rigid is also optional.

W-type cobalt chromium tungsten alloy homogenization valve

prolonged rotating space of homogenization liquid can reduce energy consumption and produce high efficiency and homogenization efficiency.

the two-stage w-type valve is widely used for processing of emulsification separate and suspended matter.

Waviness type special cobalt chromium tungsten alloy valve assembly

according to flux design needed, it adopts waviness to make cobalt chromium tungsten alloy assembly, adjusted the gap of homogeneous via moving valve cone and fixed valve seats, it appears radial throttle function between two kinds of fluid, and gets homogeneous fluid.

the materials processed are fully homogenization and emulsified.

FILL-PACK homogeniza tion machine

special material plunger

It adopts cobalt chromium tungsten alloy plunger of anti-corrosion and antifriction surface welding and surface coated ceramic plunger, the useful life of seal assembly and seal ring is prolonged.

Materials:

1, Main Frame, power supply box: cast iron;

2, Outer covering: 1cr17ni2;

3, Parts touching liquid:

A, pump chamber and inner turnbuckle: SUS 304

B, the parts except pump chamber and inner turnbuckle: 1cr17ni2 (for durability); Parameters:

Working pressure：25MPa

Capacity: 3000L/H

Power: 22KW

Inlet: 25mm

Outlet: 15mm

Viscosity: ≤0.2

Temperature: ≤80℃

Motor speed: 1440 rpm

Weight: 1300kg

Overall dimension: 1600*1100*1550mm
