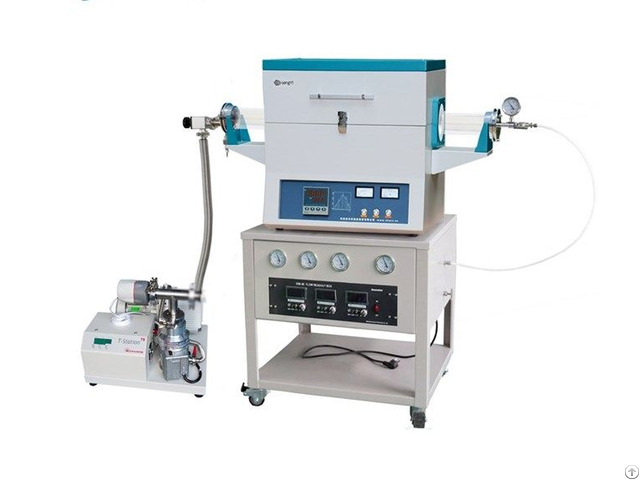

CHY-T1250A-3Z4C Laboratory 1200 degree CVD Furnace with O.
D50*1000mm Quartz Tube lab equipment manufacturer 1 - O.
D50*1000mm high purity quartz tube
2 - High quality ceramic fiber chamber
3 - PID Programmable controller
4 - Three gas way mass flow controller with precision gas flow controller
5 - Two stage Vacuum Pump
5 - Made by Henan Chengyi CVD System APPLICATION
1 - Laboratory heat thermal processing
2 - High Vacuum Sintering Heating Annealing Brazing
3 - Laboratory Thin Film Preparation, Nano tube growthing
4 - Laboratory CVD system, graphene growthing, preparation.
PRODUCT PARAMETERS
Product Name 1200 degree CVD Furnace
Modle No.
CHY-T1250A-3Z4C
Heating zones Single heating zone
Heating zone length 400mm
Constant temperature zone length 200mm
Tube Material high purity quartz tube
Tube diameter O.
D50*I.
D44*100mm Quartz Tube
Tube Length 1000mm, 750mm, 1000mm, 1200mm as enquiry
Thermcouple K type
Maximum heating temper 1150 dgree
Heating rate 20c/min, adjustable
Heating element Fe-Co-Al alloy
Sealing Method stainless steel vacuum flange
Vacuum Air-tightness 9.8×10-4Pa
Temperature Accuracy ±1℃
Control Mode Intelligent PID programmable Control
Mass Flow Controller 3 gas way mass flow controller
Flowmeter Core 304 stainless steel
Measure Accuracy +/- 1.0% F.
S
Pressure Range -0.1~0.15MPa
A way gas range 0~100SCCM
B way gas range 0~200SCCM
C way gas range 0~500sccm
Vacuum Pump 4C
Power Supply AC220V 50Hz
