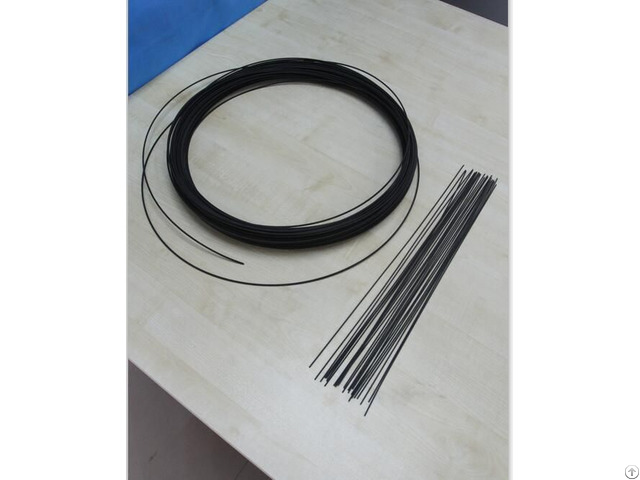

Titanium Mmo Wire Anode - China

Titanium Substrate:

Meet ASTM standard B256 in Grade 1 or Grade 2 - MMO Wire Anode is mainly used for continuous horizontal anode ground bed, incontinuous vertical ground surface, ground storage equipments, underground storage equipments, cable protection, water storage vessels, and water treatment equipments, etc.

Highlight is the high gas evolution potential.

Wire Anode Parameter:

Diameter(mm)

Length(m)

Current Output(mA/m)

Expected life (Y)

1.5

300

328

20

3.0

300

656

20 The dimension and parameter can be designed according to customer's request.

Wire Anode Application:

Canistered anodes; Continuous horizontal ground bed;

Discontinuous vertical ground bed;

Above ground storage tanks;

Underground storage tanks;

Electric cable shielding;

Water storage tanks;

Water heater anti-corrosion;

Water treatment equipment.

The biggest advantage of the MMO Titanium Wire Anode is the high gas evolution potential, basically no gas evolution at the cathodic protection potential (protection potential at -850 Mv, generally preferable to -1.2 V, vs.

CSE, relative to the Cu/saturated and CuSO4 reference electrode), which eliminates the security risks.

It also has other advantages such as low current density, superior power saving, excellent stability, strong combination of coating and substrate and long working life.

Another of our unique advantage in titanium anode is the preparation of the raw material, which is specially developed by the three generations of engineers based on the practical working conditions.

Elade have self-owned technology to create the anode active additive for Ruthenium compounds, Iridium compounds and Platinum compounds specially used for the anode field.

Elade also cooperate with BAOTI Group, Western Metal Materials and BAO Steel Group to produce the Titanium material for anode based on the international criteria, the whole process is well controlled during smelting, ingot casting and rolling plate.

This titanium material has higher corrosion potential, the surface is not easy to harden which increase the coating times on the substrate and then reduce the cost.

Elade have taken the more advanced technologies of Electrostatic Coating, Isothermal Pressure and Special Gas Bias to ensure even coatings, by which the activity and longevity are assured.

Company Contact:

• Posted By: Shaanxi Elade New Material Technology Co., Ltd.

• Phone: 8613571492870

• Address: No.32, Chuanghui Road, New Industrial Hi-Tech Zon, Xi'an , China

• Email:

• Website: http://www.eladeanode.com

• Business Description: Shaanxi Elade New Material Technology Co., Ltd located in Xi An Hi Tech Development Zone, is a certified high & new technology company, specialized in R&D, manufacturing and selling titanium and various substrates electrodes, as well as nonferrous metals and their deep processed products.



  Elade has its own professional technical team who has been cooperating closely with XiAn Jiaotong University on researching and developing electrodes in several years.

  With continuous improvement and innovation on design and processing technique, its products win good reputation and possess more competitive in the market; especially the metal electrodes suitable to various chemical industries had reached the international advanced level both on the product quality and performance.



  Elade is mainly engaged in metal materials like titanium, tantalum, niobium and zirconium as well as various composite anode and cathode materials applicable to the field of electrochemistry, which have been successfully used in many fields, such as production of chlor alkali, chlorate and perchlorate, electroextraction of non ferrous metals, electro deposition, electroplating, electrophoresis, electro dialysis, electro synthesis, ionized water synthesizer, cathodic protection, formation of aluminum and copper foils and after treatment.

  Elade also provides integrated design, manufacture and technical consulting service, including surface anodic oxidation and corrosion protection through Ru and Pd coatings for titanium equipments, electrodeposition, electroplating water treatment and so on.

  The company has complete advanced management system, production and testing equipments, and has obtained ISO9001 Quality System Certification.
