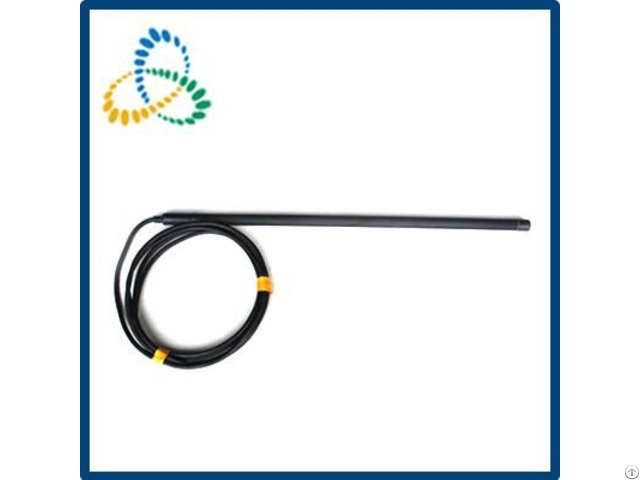

Mmo Tubular Anode - China

Elade’s MMO tubular anodes coating are consisting of Precious Mixed Metal Oxides IrO2-x and Ta2O5, it has been proven to have a good performance within the design life.

The coating thicknesses are designed base on application environment and tested by X-Ray and the life span are verifying by Acceleration life test which conducts in Elade’s test laboratory for each batch of goods.

Elade anodes also have been tested by USA third party test laboratory according to NACE standard TM0108-2008, the test result turned out to be very excellent.

Tubular anode is used for the soil, fresh water, sea water and mud, or the other natural environments, it could be used alone or make it a string.

Various tubular anode available as requested.

Titanium Substrate: Meet ASTM standard B338 Grade 1 or Grade2 - Tubular Anode Parameter: For Fresh water, Calcined petroleum Coke application: Anodes Diameter

Length

Current Output

Design Life

19mm

1200mm

7A

20 years

25mm

500mm

4A

20 years

25mm

1000mm

8A

20 years

25mm

1200mm

10A

20 years

25mm

1500mm

12A

20 years

32mm

1200mm

12A

20 years For Sea water application: Diameter

Length

Current Output

Design Life

19mm

1200mm

43A

20 years

25mm

500mm

24A

20 years

25mm

1000mm

47A

20 years

25mm

1200mm

57A

20 years

25mm

1500mm

71A

20 years

32mm

1200mm

72A

20 years Design current density under different electrolytes: Electrolytes Maximum design current density A/M2 Expected Life Carbonaceous backfill 50 20 years Calcined petroleum coke 100 20 years Fresh water 100 20 years Sea water 600 20 years Mud 100-300 20 years tubular anode Tubular Anode Cable Selection: PVDF, HMWPE, HALAR, XLPE, PVC or KYNAR are all optional, Elade recommends dual-insulated cable, such as PVDF/HMWPE cable for use where anodes operate in groundbeds high in chlorides - resulting in chlorines gas generation.

Where chlorides are not anticipated, such as shallow vertical and horizontal surface beds, an economical cable choice is HMWPE.

The high current capacity (150 amps) and flexibility of the Exane Rig cable makes it ideal for seawater applications.

Tubular Anode Applications: Ground beds: (Deep, Shallow or open hole); Sea Water; Brackish Water; Fresh Water; Working Environment: Including soil, carbonaceous backfill, fresh water, brackish water, and seawater.

Advantages: High current output and low electrical resistance; Using tubular anodes can save 15-35% of install cost comparing to use other anodes; Anode-cable assemblies are easy to handle, transport and install because of their unique flexibility; Tubular anode cable are easy to handle, transport and install because of flexibility; Lower cost per amp; Guaranteed electrical contract and moisture seal integrity; Consistently low resistance anode; Ordering Information: When ordering tubular anodes from Elade, please specify the following:

· Anode Type (for example, length, diameter…).

· Number of anodes per string.

· Center-to-center spacing between anodes along the cable.

· Cable tail length (above the top anode).

· Total cable length (sum of lengths of anodes, spaces and tail).

· Current output.

· Number of centralizers required and hole size.
