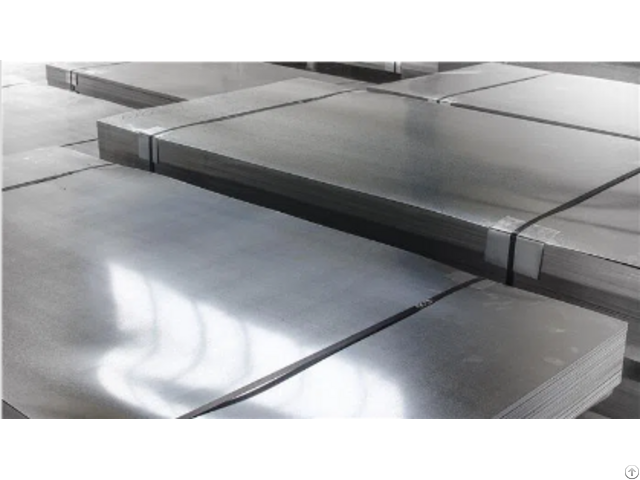

Tinplate Sheet - China

Tinplate is produced from a cold rolled sheet which is electrolytically coated with tin.

The tin coating provides corrosion resistance to the steel substrate and plays a beneficial role in the preservation of certain foods.

In addition, the surface of the tinplate lends itself to printing and silk screening.

It is used widely in the packaging industry for cans, can ends, larger containers, and a range of closures.

Tin coatings of different thicknesses are produced to suit specific requirements.

Tinplate/Tinplate Coil/Tinplate Sheet/Tinplate Strip/Electrolytic Tinplate/ Printed Tinplate/Film Laminated Tinplate/ETP/SPTE The electrolytic Tin Plate (ETP) consists of cold-rolled sheet steel (black plate steel) with a thickness of 0.15-0.50 mm.

It owes its name to an ultra-thin coating of tin which imparts a whitish gloss to the material.

This coating is electrolytically applied and protects the material from corrosion.

- Reference standard: GB2520-88, JIS G3303-1997 and DIN EN10203-91

- Material: SPCC/MR

- Thickness available: 0.13mm to 0.45mm

- Width available: 7mm to 600mm

- Temper grade: T1-T6/DR8 BA and CA both.

- Tin coating: ordinary 2.8g/2.8g, 5.6g/5.6g, We also can produce according to customers' requests

- Coil diameter: ID 420/508mm, OD from 1, 000 to 1, 250mm

- Package: Anti-rust paper, corner protected.

by sheet or coils according to customer's requirements.

- Applications: metal packing is widely used.

Like Paint Can, Paint Brush, Aerosol Can, Cosmetic can, Beverage Cans, Milk can, Cookies Cans, Metal filters, Metal Decorative boxes, and So on.

Bright surface: Glazed surface obtained after melting treatment of electro-tinned smooth raw material strip with extremely fine rubstone figures by processing.

Rough surface: Glazed surface obtained after melting treatment of electro-tinned raw material strip featuring certain oriented rubstone figures.

Silver surface: Glazed surface obtained after melting treatment of electro-tinned raw material strip with a rough matt surface.

Matt surface: Matt surface of general matt raw material strip without tin melting treatment.

Tinplate is a low carbon thin sheet or strip of soft cold-rolled steel, less than 0.50 mm thick, coated electrolytically on both sides with block tin.

Tinning is carried out by a continuous electrolytic process after degreasing and pickling operations which eliminate, respectively, the greasy residue of rolling, and the oxide film covering the steel strip.

To satisfy the various requirements for packaging, it is possible to obtain differential coatings per side.

After tin-plating, two new operations are carried out: remelting and passivization before the final oiling.

- Reference standard: GB/T 2520-2000, JIS G3303-2002 and DIN EN 10203-1991

- Raw material: MR and SPCC

- Thickness: 0.18 to 0.50mm

- Width: 260 to 980mm

- Coil diameter: ID 420mm or 508mm

- Temper grade: T2, T3, and T4

- Tin coating: ordinary 2.8 or 2.8g and 5.6g or 5.6g, we can produce according to customer's requests

- Applications: paint, chemical, and other usages can make batteries, electric cables, s and other industries

- Package: anti-rust paper, corner protected.

Sheets or coils according to customer's request.
