Welded On Serrated Finned Tube - China

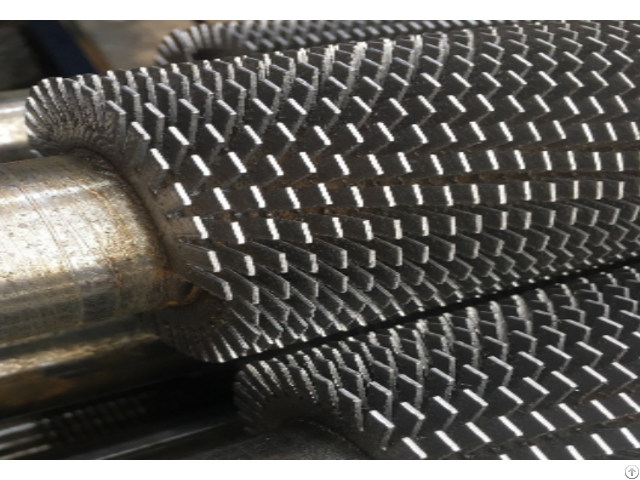

Welded On Serrated Finned Tube, The fin strip is wound spirally onto the tube and welded continuously to the tube along the spiral root.

As per type "WO", but fins are serrated.

Advantages: Higher heat transfer coefficient, for the same pressure drop compared with WO fin.

Materials: - Base tube: Carbon Steel, Low Alloy Steel, Stainless Steel, Nickel Alloys, Nickel Alloys

- Fins: Carbon Steel, Low Alloy Steel, Ferritic Stainless Steel, Austenitic Stainless Steel Fields of application:

Fired Heaters, Heat Exchangers, Boilers, Pre-Heaters, Coolers, Heat Pipes, Dryers, and Heaters.

Manufacturing process:

The fin strip is spirally wound onto the tube and welded continuously to the tube along the spiral foot.

Welding process: HF, SF, TIG, MIG, MAG Serrated fin tube is now more and more popular in the manufacturing of boiler, pressure vessel, and other heat exchanger equipment.

It has more advantages than other common solid fin tubes, which mainly include:

- Higher heat transfer coefficient.

The serrate can make the gas flow across the fins freely, enhancing the turbulent motion and improving the heat transfer effect.

Researches show that serrated fin tubes' heat transfer efficiency is about 15-20% higher than common solid fin tube.

- Reduce metal consumption.

Due to the higher heat transfer coefficient, for the same amount of heat, the serrated fin tube is with less heat transfer areas, which helps reduce the metal consumption.

- Anti-ash-deposition and anti-scaling.

Due to the serrate, it is very hard for the serrated fin tube to deposit the ash and scale.

- It is more flexible to adapt to the changes in the gas flow direction.

- Serrated fin tube is lighter than a solid fin tube.

In order to forward you a prompt offer we would be pleased to receive your detailed inquiry containing the following:

- Base tube material and quantity

- Base tube size

- Fin material

- Fin type

- Fin diameter or height

- Fin thickness

- Fins per inch, meter, or fin pitch

- Length of plain, unfinned ends

(necessary to roll or weld the tubes into tubeplate or assembly)

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
