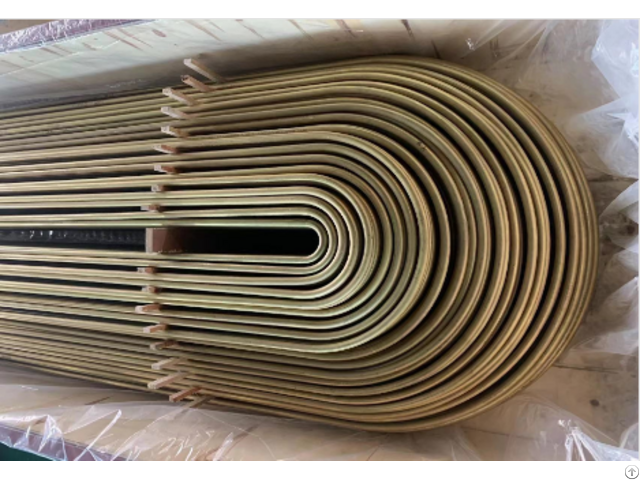

U-shaped Monel 400 Tube|B163 UNS N04400 Tube The structure of monel 400 (UNS N04400, NCu30) alloy is a high-strength single-phase solid solution, which is a nickel-based corrosion-resistant alloy used in the industry very early.

Monel 400 (with good comprehensive performance and wide application range, it has become an indispensable alloy due to its good corrosion resistance.

Monel 400 is mainly composed of Ni, 30% Cu, and a small amount of Fe (1% - 2%).

U-shaped Monel 400 tubes are commonly used in various heat exchange equipment, boiler feed water heaters, pipelines, containers, pumps, valves, shafts, etc.

in petroleum and chemical processing, seawater desalination equipment, salt production equipment, propeller shafts, Gasoline, and water tanks, etc.

U-shaped Monel 400 Tube|B163 UNS N04400 Tube Chemical Composition

C 0.30max

Mn 2.00max

Si 0.50max

Ni 63.00min

Cu 28.00-34.00

Fe 2.50max U-shaped Monel 400 Tube|B163 UNS N04400 Tube corresponding grade

Monel 400 - - - Ni68Cu28Fe

JIS ASTM UNS, SAE DIN EN

NW4400 N0.4400 MONEL400 2.436 NiCu30Fe Physical properties of U-shaped Monel 400 Tube|B163 UNS N04400 Tube

Specific heat (J/kg.

K) 20℃ 427 Resistivity (μΩ.

cm) - 54.7

Thermal conductivity (W/m.

K) - 21.8

Average thermal expansion coefficient (10-6/℃) 20-100℃ 13.9

Melting point (℃) - 1300-1500 Mechanical properties of U-shaped Monel 400 Tube|B163 UNS N04400 Tube at room temperature

0.2%Yield Strength(N/mm²) ≤193

Tensile Strength (N/mm²) ≤483

Elongation (%) ≤35

Rockwell Hardness B75 max U-shaped Monel 400 Tube|B163 UNS N04400 Tube Usages U-shaped Monel 400 Tube|B163 UNS N04400 Tube can be used in many industrial fields: 1 - Seamless water pipes, and steam pipes in power plants 2 - Seawater exchangers and evaporators 3 - Sulfuric acid and hydrochloric acid environments 4 - Crude oil distillation 5 - Deep sea Pump shafts and propellers for water-use equipment 6 - Equipment used in the nuclear industry to manufacture uranium extraction and isotope separation 7 - Pumps and valves used in the manufacture of hydrochloric acid equipment 8 - Marine structure surface, seawater desalination/salt/right oil refining Equipment, marine components, heat exchangers, chemical/seawater desalination plant valves, pump components, etc.
