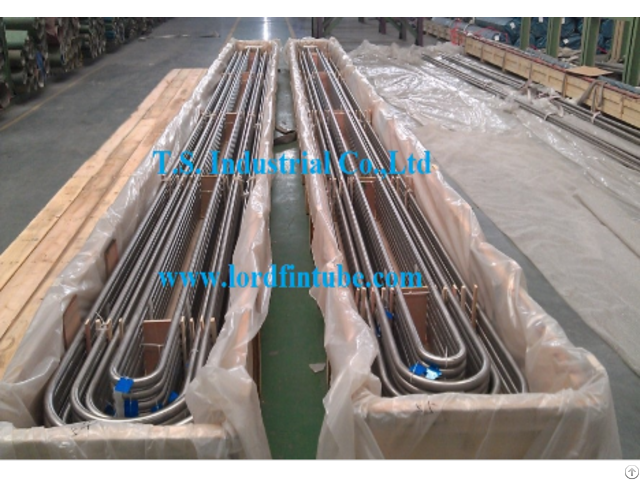

U Bend Seamless Tubes Sb 444 Uns N06625 - China

U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Technical Delivery Conditions (TDC) E-2670-ME-00-TDC-0258 (SB-444 UNS N06625) U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger tubes SB-23 / SB-23M ASME Section II Part B Ed.

65 U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Markings/Test report AS per SB-829/SB-829M U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Tolerances As per SB-444/SB-444M 1 - U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 General requirement, 1.1 Wall thickness shall be as specified in PR or PO (i.e. minimum ) after construction.

1.2 All Tube material shall be free of rust, dirt, pits, gouges, and crevices.

1.3 Product Analysis shall be reported in MTC.

1.4 Each tube shall be formed from a single length without circumferential welds.

1.5 All tubes shall be in the annealed condition.

2 - U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Non-destructive Testing, 2.1 All tubes shall be subjected to Eddy current testing as per ASTM E 571 & Annexture-I.

2.2 Visual inspection of the U-bends after the bending in order to verify that there are no flaws such as folds, shrinks, friction signs or material tears, or flattening.

3 - U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Marking and Certification, 3.1 Material marking fluid shall be compatible with Inconel steel, e.g. they shall not contain chlorides, zinc, sulfur, or other detrimental components.

3.2 Markings shall be protected from erosion, wear, or other events that may render them unreadable.

3.3 Material test reports shall be submitted conforming to mandatory certification requirements as per material specification and this TDC.

3.4 Material certificate shall contain all the data relating to the condition of supply, tests, and examinations.

4 - U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Additional Clients General Requirement, 4.1 The country of origin for items (finished product) and the raw materials from which the items are formed shall be traceable from the certification and/or marking.

5 - U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Tolerances 5.1 Tube wall thinning in the bends shall not exceed a nominal 3% of the original tube wall thickness.

5.2 Flattening at the bends shall not exceed 10% nominal OD of straight portion tube for U-tubes.

5.3 Mock-up result shall be checked at minimum bend radius (0, 30, 60, 90 Deg) for thinning and flattening.

6 - U-bend Type Seamless tubes SB-444 / SB-444M UNS N06625 Grade 1 Heat Treatment for U-bend portion, 6.1 After bending all tubes shall be subjected to heat treatment at 871˚C min.

followed by rapid cooling.

6.2 Heat treatment shall be completed by electric resistance or furnace methods.

Open Flame heat treatment is not permitted.

6.3 For electric resistance or induction heating, the heat-treated portion of the U-bend shall extend at least 300 mm beyond the tangent point.

For furnace heating, the heat treatment shall extend at least 600 mm beyond the tangent point.

6.4 After heat treatment all tubes shall receive a descaling treatment.

All mill scales will be removed.

6.5 During treatment mentioned in Clause 6.1, the Inside surface of the tube shall be protected by an inert gas atmosphere.
