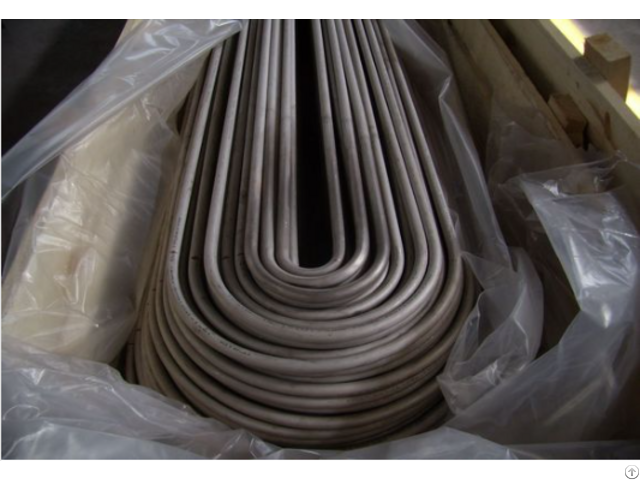

U Bend Ferritic Steel Tube Astm A268 Tp405 - China

TP 405 is a low-carbon, 12% chrome steel, not subject to appreciable hardening through air cooling from high temperatures.

This tendency retards the formation of hardening cracks caused by welding.

Practically the same corrosion and oxidation resistance as TP410 - Can be machined, drawn, spun, and formed without difficulty.

Used for applications where hardening upon cooling from high temperatures must be avoided.

Has excellent long-time stability up to 1200°F.

U Bend Ferritic Steel Tube ASTM A268 TP405 Chemical composition mass in %

Material Grade Norm C, max Mn, max P, max S, max Si, max Cr Ni Al

1.4002 EN 10297-2 0.08 1.00 0.040 0.030 1.00 12.00-14.00 - 0.10-0.30

TP405 ASME SA / ASTM A268 0.08 1.00 0.040 0.030 1.00 11.50-14.50 0.50 0.10-0.30 U Bend Ferritic Steel Tube ASTM A268 TP405 Mechanical properties and heat treatment

Material Grade Norm Rp 0, 2 MPa, min Rp 1, 0 MPa, min Rm MPa A (%), min Hardness HRB, max Heat Treatment

1.4002 EN 10297-2 210 220 400 10 - Annealed

TP405 ASME SA / ASTM A268 205 - 415 20 95 Annealed

Rp 0, 2 = Rotation Rp 1, 0 = Yield Strength Rm = Tensile Strength A = Elongation U Bend Ferritic Steel Tube ASTM A268 TP405 Tolerances

OD - Tube OD WT Special WT ID

ab Ø4, 55 mm ±0, 050 mm ±0, 150 mm ±0, 100 mm X

ab Ø9, 53 mm ±0, 050 mm ±0, 100 mm ±0, 080 mm ±0, 050 mm

ab Ø30, 00 mm ±0, 100 mm ±0, 150 mm - ±0, 050 mm

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
