Spiral Wound Galvanized Finned Tube - China

Advantages of hot dip galvanized finned tube

- The cost of hot-dip galvanized fin tube treatment is low: the cost of hot-dip galvanizing antirust is lower than that of other paint layers;

- The hot-dip galvanized finned tube is durable: in the suburban environment, the standard hot-dip galvanized antirust thickness can be maintained for more than 50 years without repair; in urban areas or offshore areas, the standard hot-dip galvanized antirust coating can be maintained for 20 years without repair;

- The reliability of the hot-dip galvanized finned tube is good: the galvanizing layer and the steel are metallurgically combined and become a part of the steel surface, and the durability of the primary coating is more reliable;

- The toughness of hot-dip galvanized fin tube coating is strong: the zinc coating forms a special metallurgical structure, which can withstand mechanical damage during transportation and use;

- Comprehensive protection of hot-dip galvanized finned tube: every part of the plated part can be coated with zinc, even in the depression, sharp corners and hidden places can be protected by the full name;

- Hot dip galvanized finned tube saves time and effort: the galvanizing process is faster than other coating construction methods, and can avoid the time required for painting on the construction site after installation.

High-frequency welding finned tube radiator for string type and winding type fin made of the shortcomings, and improved by high-frequency welding is an efficient heat radiating element of the finned tube, fin tube itself is the strip thickness 0.8-1mm winding in the finned tube, and the high-frequency welding process, the welding in tablets pipe, ensure the bonding strength of tube and fin, the metal heat intensity reached 1.10 1.20w/kg degrees centigrade, widely used in boiler economizer of the finned tube air preheater and production workshop, production of the residential energy-saving radiator, and heat pipe as the late winding preferred.

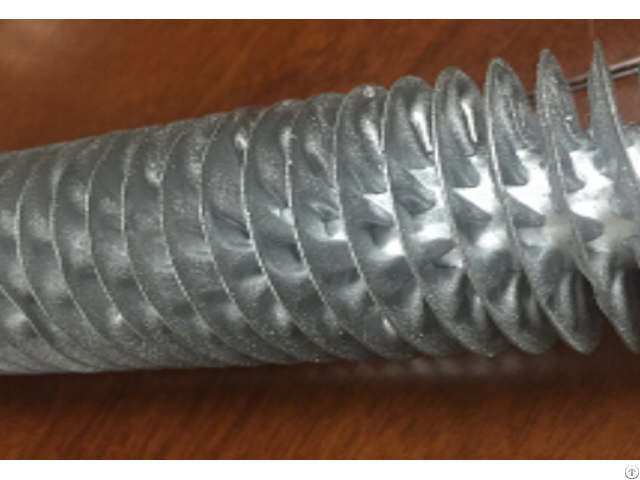

A Spiral finned tube is an efficient heat transfer device.

Its heat transfer area is several times to several times, it can strengthen heat transfer, reduce the flow resistance, and reduce metal consumption, so as to improve the economic and operational reliability of heat exchange equipment.

At present, the spiral-finned tube has been widely used in various boilers.

- Specification unit of spiral finned tube: mm

- The diameter of the base tube: 25-159 D

- Base wall thickness delta 2-8

- Fin thickness: 0.8-2 s

- Fin height: 10-30 H

- Pitch: 5-20 t

- Fin tube length: less than or equal to 10000 L

Note - The table outside the specifications can be made by the demand side agreed

- The fin to generally less than 1/2d

- The factory produced the spiral finned tube DG1020-97 JB/T6512-92 and other standards - Material: ordinary carbon steel, stainless steel, corrosion-resistant steel In order to forward you a prompt offer we would be pleased to receive your detailed inquiry including the following:

- Base tube material - Base tube size (OD x WT x Length)

- Fin material

- Fin type

- Fin diameter or height

- Fin thickness

- Fins per inch, meter, or fin pitch

- Length of plain, unfinned ends

- Finned Tube Quantity

(Additional fabrication, such as bending or welding the tubes into tubeplate or assembly)

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
