EN 10305-4 Black Phosphate Steel Tubes

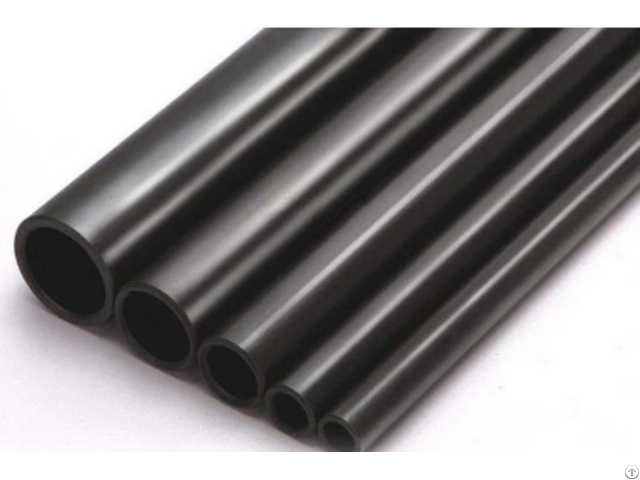

EN10305-4 E235+N/DIN1630 St37.4 Black Phosphate Steel Tubes

Seamless precision steel tubes for hydraulic usage Description: galvanized or phosphate seamless cold-drawn precision steel tubes for hydraulic and pneumatic lines with improved corrosion protection.

Tolerances: according to EN 10305-4 "Steel tubes for precision applications – Technical delivery conditions- Part 4: Seamless cold drawn tubes for hydraulic and pneumatic power systems".

Steel grade: E235 (St-35/37.4) Delivery condition: +N (NBK) normalized under a controlled atmosphere.

Internal and external phosphate coating; Externally galvanized tubes with a zinc coating of 8 to 12 μm and subsequently chrome VI-free passivated (blue or iridescent silver).

Synopsis of Process Routing: quality carbon steel → cold drawing → bright heat treatment without oxidization (NBK status) → nondestructive testing.

In the wall honing and inside flushing under the high pressure→ plastic capping on both ends→Phosphating→Anti rust oiling outside surface→Bundles Main Features: high accuracy, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall.

The steel tube is able to stand high pressure.

No deformation after cold bending, no crack after flaring and flattening.

The complicated geometrical forming and machining can be realized.

bright black.

Color is homogeneously distributed on the tube surface.

The tube has good properties of antirust Main Application: to be used in hydraulic systems, automobiles, s and in the occasion where the high precision, brightness, cleanness, and mechanical properties of the tube are required.

Main grades: ST35, ST45, ST52, E215, E235, E355, etc.

Delivery Status: NBK(+N)+Black Phosphating Main Application: - Phosphated hydraulic tube is mainly used in hydraulic systems.

- Engineering machinery Machine tool industry Hydraulic industry Special vehicle

- Automobile pipeline Heavy machinery Compressor Shipbuilding industry

- Railway locomotive Diesel engine Utility boiler Injection molding machine

- Power equipment Heavy duty automobile Forging and stamping machine
