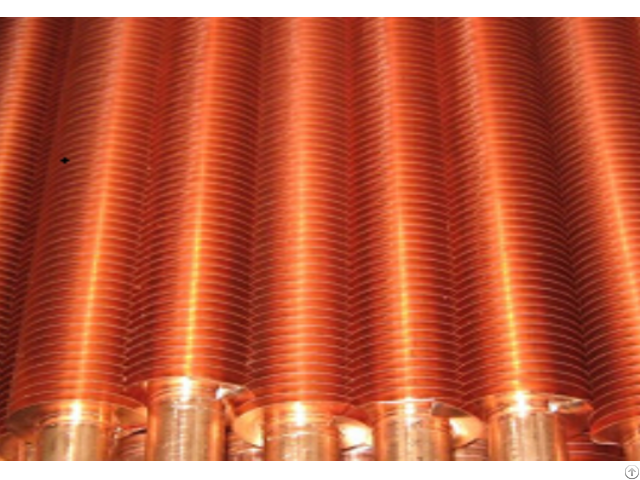

L Foot Tension Wound Finned Tubes - China

L-Type Tension Wound Finned Tubes also called Wrap-On Finned Tubes, which used in applications where temperatures are lower than 300℃.

In other words, L-fin tubes are mainly used in low-temperature applications where some degree of tube wall protection is needed.

L-Foot tension wound fin tubes consist of two parts, aluminum fin, and base tube.

The thin aluminum fin strips are tightly wound helically around the base tube circumference.

A foot is first formed at one side of the fin strip (Called the name L foot).

The strip is then wound tightly around the tube, with the foot bearing on the tube's outer surface.

These short horizontal limbs of each L are in full contact with the base-tube surface to cover it completely.

While Tension in the fin strip as it is wrapped around the tubes serves to seat the fin foot forcefully on the tube, and then to hold the fin firmly in place.

L-footed finned tubing offers maximum heat transfer at lower temperatures and circumferences.

The unique L-shaped design holds fins rigidly to withstand heat cycling and high-velocity air vibration.

These fins offer a certain degree of atmospheric protection of the tube wall anti-corrosion.

The broad contact surface between the tube and the fining enhances heat transfer.

This fin design is highly efficient and cost-effective.

The ends of the fins have to be stapled to prohibit the aluminum fin from unraveling or losing contact between the fin foot and the base tube.

This contact is critical to the operation of the air coolers since the heat is transferred from the tube wall, through the fin, to the surrounding hot air.

L Finned tubes Advantages:

- Suitable for use in the low-temperature application

- This kind of fining type is the most cost-effective way compared to the others.

- The failed fins could easily be removed during production and bare tubes can be used again for fining.

- There is no need to make a helical grove over the core tube.

- It is possible to place the fins on a super thin-walled tube with is particularly desirable when using expensive alloys as core tubes.

- The tubes can withstand a temperature of up to 130℃ without the risk of atmospheric corrosion or thermal stress.

L Finned Tubes Weakness:

The fins are not so strong to resist mechanical damage when external forces applied to the fin area

Handling shall be carefully done with care to avoid any damage.

Finned tubes may be damaged when using either steam or high-pressure water for cleaning

As the fins are helically wrapped in grooves, the un-finned area is not covered which can be exposed to corrosive media, and galvanic corrosion at the base of the fins can be accrued

Tubes shall be very straight with a smooth outside area to make good finned tubes

Fins should be fixed at both ends to avoid un-wrapping L Finned Tubes Application:

- Oil and gas refineries

- Petroleum, chemical, and petrochemical industries

- Natural gas treatment

- Steel-making industry

- Power plants

- Air conditioning

- Compressor coolers In order to forward you a prompt offer we would be pleased to receive your detailed inquiry including the following:

- Base tube material

- Base tube size (OD x WT x Length)

- Fin material

- Fin type

- Fin diameter or height

- Fin thickness

- Fins per inch, meter, or fin pitch

- Length of plain, unfinned ends

- Finned Tube Quantity

(Additional fabrication, such as bending or welding the tubes into tubeplate or assembly)
