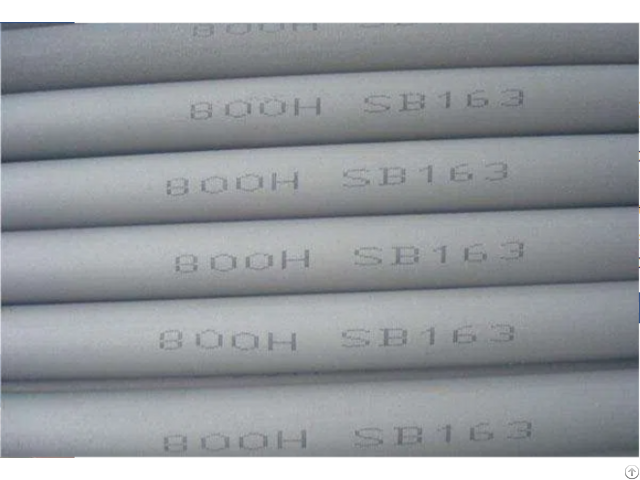

Incoloy Tube Alloy 800 - China

Alloy 800 is a combination of nickel and chromium alloy that has excellent tensile strength and resistance to oxidation as well as carburization properties.

This alloy is extremely functional as it maintains a stable structure, even when exposed to high temperatures.

Alloy 800 is extremely resistant to corrosion, even in acidic environments.

For high-temperature applications requiring optimum rupture and creep properties, Alloys 800H and 800HT are used.

- Inconel 800 Applications: Inconel Alloy 800 is used for process piping, heat exchangers, heating-element sheathing, carburizing equipment, and nuclear steam-generator tubing.

- Inconel 800 Specifications: Inconel Alloy 800, Alloy 800, UNS N08800

- Inconel 800 Available Forms: 800 Nickel Alloy Sheet, 800 Nickel Alloy Plate, 800 Nickel Alloy Bar Inconel 800, Incoloy 800 Sheet, Plate

- Inconel 800, Incoloy 800: AMS 5871, ASTM B409, AMS 5877, BS 3072NA15, BS 3073NA15, DIN 17460, EN 10028-7, EN 10095

- Stock Size: - Thickness: 0.025"-3.00"

- Width & Length: 36" X 120" or 48" X 144" Inconel 800, Incoloy 800 Tubing

- Inconel 800, Incoloy 800: ASTM B163, ASTM B407, ASTM B514, ASTM B829, ASTM B775, ASTM B515, ASTM B751, BS3 3074NA15, ISO 6207, DIN 17459

- Stock Size: - Outside Diameter: 1/16"-3" - Wall Thickness: 0.010"-0.250"

- Length: 17'/24' FT R/L

(3/8" OD x 0.049" Wall x 20 FT

1/4" OD x 0.049" Wall x 20 FT) Inconel 800, Incoloy 800 Pipe

- Inconel 800, Incoloy 800: ASTM B514, ASTM B829, ASTM B775, ASTM B515, ASTM B751, BS3 3074NA15, ISO 6207, DIN 17459

- Stock Size: 1/4" SCH 10 to 16" SCH 80 Inconel 800, Incoloy 800 Bar

- Inconel 800, Incoloy 800: AMS 5766, ASTM B408, ASME B408, ISO 9723, ISO 9724, BS 3076NA15, BS 3075NA15, EN 10095

- Stock Size: 1/4" Diameter to 3" Diameter Inconel 800 Round Bar Per AMS 5766 Inconel 800H/HT (UNS N08810 + N08811) is a dual-certified alloy meeting the element requirements of both alloys.

The difference between the H and HT is the restricted aluminum and titanium content in 800HT.

This results in higher creep and stress rupture properties.

It is also moderate in strength with good resistance to oxidation at elevated temperatures for long periods at 1200 Degrees F - 1600 Degrees F.

It eliminates embrittlement from precipitation of the sigma phase and provides resistance to chloride stress-corrosion cracking.

This alloy is used in chemical and petrochemical industries, power plants, industrial furnaces, and heat-treating equipment.

Inconel 800H/HT Bar

- Inconel 800H/HT: ASTM B408, ASTM B564, ASME SB408, ASME SB564

- Stock Size: 1/4" Diameter to 8" Diameter

- Common Trade Names: Incoloy 800, Ferrochronin 800, Nickelvac 800, Nicrofer 3220 Incoloy 800HT is a nickel-iron-chromium alloy.

The alloys' higher creep-rupture strength is the result of aluminum, carbon, and titanium contents.

In addition, Incoloy 800 has good corrosion resistance in acidic environments while being resistant to oxidation and carburization in high-temperature environments.

Incoloy 800 Available Formats

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
