Hrsg Boiler Tube - China

In the combined cycle, the waste heat of the turbine will be recycled by HRSG and generates steam to generate electricity.

HRSG super long tubes are the main components of HRSG.

Changbao products cover various sizes scope.

Changbao is a qualified supplier of Herbin Boiler Work, Shanghai Boiler Work, Dongfang Boiler Work, IHI, ALSTOM, etc., with products exported to Japan, Korea, America, etc.

Main steel grades of HRSG super long tubes:

SA210A1, SA210C, SA192, SA213-T11, SA213-T12, SA213-T22, SA213-T91, SA213-T92, 20G, 15CrMoG, 12Cr1MoVG, P235GH, 13CrMo4-5, etc.

HRSG SUPER LONG TUBES LENGTH: 16-26M (MAX L=28M) - GB5310-2008 Seamless steel tube for high-pressure boiler

- ASME SA210 Seamless medium carbon steel tube for high-pressure boiler and superheater

- ASME SA192 Seamless carbon tube for high pressure

- ASME SA213 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super Heater, and Heat exchanger Tubes

- EN 10216-2 Seamless Steel Tubes Technical Conditions for Pressure Usage Introduction of the European and Japanese standard boiler tubes

The boiler tube is mainly used in the manufacture of superheaters, re-heater, water-cooled walls, economizers, etc.

for supercritical and ultra-supercritical boilers.

Tubes are required to have high rupture strength, high oxidation corrosion resistance, and good organizational stability.

- EN10216-2: P195GH, P235GH, P265GH, 20MnNb6, 16Mo3, 8MoB5-4, 14MoV6-3, 10CrMo5-5, 13CrMo4-5, 10CrMo9-10, 11CrMo9-10, 25CrMo4, 20CrMoV13-5-5, X11CrMo5+1, X11CrMo5+NT1, X11CrMo5+NT2, X11CrMo9-1+1, X11CrMo9-1+NT, X10CrMoVNb9-1, X20CrNiV11-1

- JIS G3454: STPG 370 (STPG 38), STPG 410 (STPG 42)

- JIS G3461：STB 35, STB 42, STB 52

- JIS G3462: STBA12, STBA13, STBA20, STBA22, STBA23, STBA24, STBA25, STBA26

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

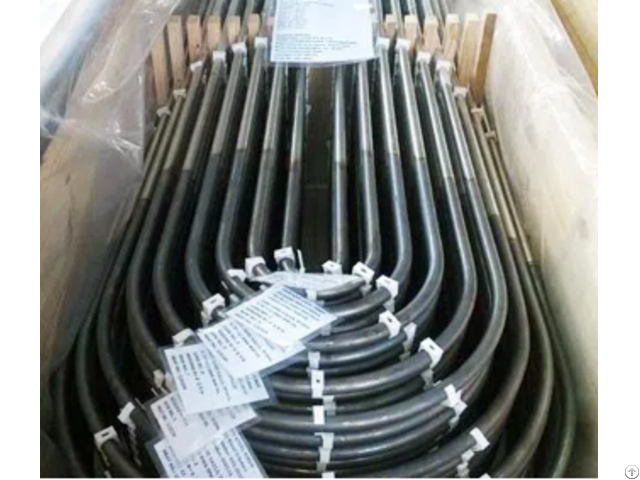

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
