Hot Sale Stock Din 1 2343 Sheet Plate Plant - China

1.2343 Steel Application The application is decided by DIN 1.2343 steel chemical composition and properties.

Some application of 1.2343 steel as below: 1 - Hot punches

2 - Forging dies

3 - Hot shear blades

4 - Hot gripper dies

5 - Extrusion tooling 1.2343 tool steel is used for highly stressed structural parts such as aircraft landing gear.

And it is suitable for high-speed hammer forging molds.

Such as aluminum and magnesium alloy hot forging die, and its hardness always is 42-50HRC.

Black metal forging molds, hardness is 40-50HRC.

At the situation of hot work die steel with a high risk of cracking, 1.2343 steel is the best choice.

The mold useful time that made of 1.2343 steel can be 1.5-3 times that of AISI L6 steel.

H11 Steel Round Bar Plate Sheet Heat Treatment 1 - Machinability

The machinability rate of 1.2343 tool steels is nearly 75% of that of the W group tool steels.

2 - Forming

1.2343 tool steels are formed by using conventional methods, machining and forging.

3 - Welding

1.2343 tool steels can be readily welded by conventional methods.

4 - Heat Treatment

1.2343 tool steels are preheated to 816°C (1500°F).

Then the steels are directly heated by increasing the temperature to 1010°C (1850°F) followed by holding for 15 to 40 mins.

The steels are then air-quenched.

5 - Forging

1.2343 tool steels are forged at 1121°C (2050°F).

For this type of steels, forging below 899°C (1650°F) is not preferable.

6 - Cold Working

Cold working may be carried out on 1.2343 tool steels using conventional methods.

7 - Annealing

1.2343 tool steels are annealed at 871°C (1600°F) and slowly cooled at 4°C (40°F) in the furnace.

8 - Tempering

Tempering is carried out on 1.2343 tool steels at a temperature ranging from 538 to 649°C (1000 to 1200°F) to obtain Rockwell C hardness of 54 to 38 - Double tempering can also be performed in these steels every one hour at the preferred tempering temperature.

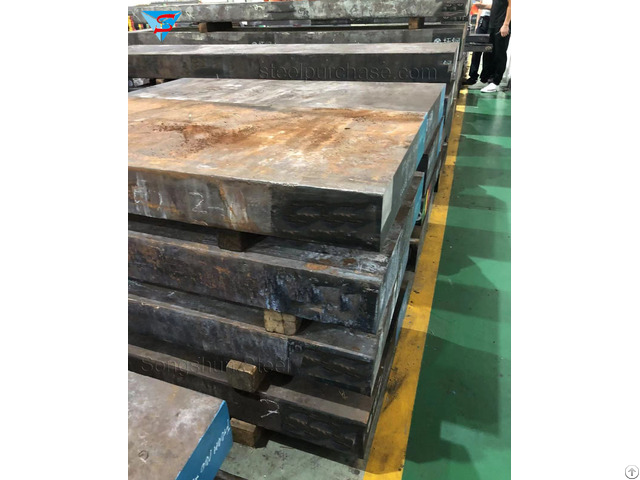

H11 Tool Steel Round Bar Sheet Plate Supply

Round Bar Specification: Dia Max 800mm; Length: 3000-5800mm

Surface: original black, peeled, polished, machined Sheet/Plate/Slab Specification: thickness: 16-800mm; width: 205-810mm; length: 3000-5800mm

Surface: original black, machined, polished Notice We have our own cutting and processing equipment.

Specifications can be cut and customized according to your requirements.

We are a professional special steel stockist and supplier with a high-quality stand for many years.

As a professional H11 steel supplier, please contacts us for any request of H11/1.2343 steels material.

Songshun Steel always with you.
