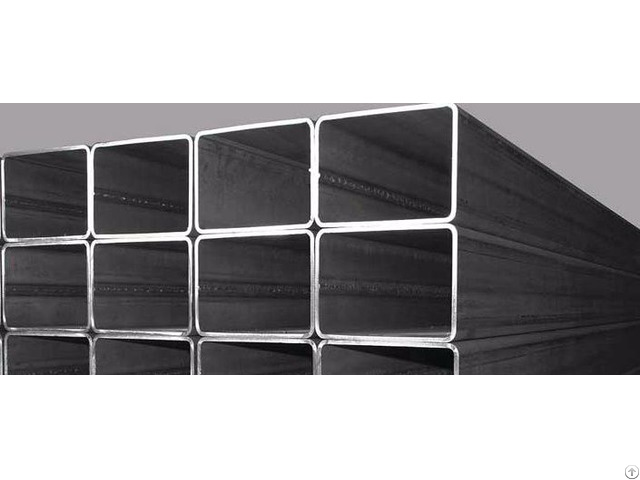

Hollow Sections Rectangular Tube - China

Rectangular hollow sections are not as common as UCs and UBs.

This is down to the fact that it is much more difficult to bolts it to other beams or to bolt other members to it.

RHSs are described by their depth, width and wall thickness.

An example is a 200 x 100 x 8 RHS, which is 200 mm deep, 100 mm wide and the wall is 8 mm thick.

Hot rolled RHSs are made at the mill as one piece, whereas cold formed RHSs are made of a flat sheet rolled at right angles and welded.

It is therefore easy to note the difference, as the cold rolled RHSs have a weld all along its length.

Shape: Hollow Sections: Square, Rectangular, Round, Triangular, Hexagonal, Eliptical Hollow sections

Scaffolding Usage: Hollow Sections:

Construction: Hall Structure, Sea Trestle, Airport Structure, Shipbuilding, Security Door Frames, Garage Doors, Strengthening Liners of Steel Doors and Windows, Indoor Partition Walls, Cable Bridge Structures and Expressway Safety Guards, Balustrade, Decorating, Residential, Ornamental Pipes Automotive Parts: Motorcar Case, Car and Bus Manufacture, Vehicles Agriculture: Agricultural Equipment Industry: Machinery, Solar Stent, Offshore Oil Field, Mine Equipment, Electromechanical Hardware,, heavy engineering, Mining and Resources, Process Engineering, Materials Handling, Mechanical Parts Traffic: Walking Rails, Roll-up Doors, Guardrail, Plaza Structure, Signage, Road Furniture, Fencing

Logistics Storage: Supermarket Shelves, Containers, Transport Industries, Commercial Construction

Other: Sports Apparatus, Leisure Equipment, Furniture, School Furniture Scaffolding Tube:

Material Storage Racks, Pallets, Hydraulic Platforms, Trusses, Columns, Purlins, Greenhouse Stands Towers Quality Standard: Hollow Sections:

GB/T 13793 Longitudinal electric resistance welded steel tubes

GB/T 6728 Cold formed steel hollow sections for general structure--Dimensions, shapes, weight and permissble deviations ASTM A500 Cold Formed Welded and Seamless Carbon Steel Steel Structural Tubing in Round and Shapes

ASTM A 53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

EN 10210 Hot finished structural hollow sections of non-alloy and fine grain structural steels

EN 10219 Cold formed welded structural hollow sections of non-alloy and fine grain steels JIS G 3466 Carbon steel Square for general structural purposes BS 1387 Steel Tubes for use for Water, Gas, Air and Steam

BS 6323 PART5 SEAMLESS AND WELDED STEEL TUBES FOR AUTOMOBILE MECHANICAL AND GENERAL ENGINEER PURPOSE

IS : 1161 Steel Tubes For Structural purpose and Electric poles.

IS : 3601 Steel tubes for mechanical & general engineering purposes.

IS : 3074 Steel tubes for Automobile purpose.

IS : 4923 Steel tubes for Hollow sections used in structures

DIN 1626 WELDED CIRCULAR TUBES OF NON ALLOY STEELS WITH

SPECIAL QUALITY EQUIREMENTS DIN 2394 WELDED AND SIZED PRECISION STEEL TUBES Scaffolding Tube:

GB 15831 Steel tube scaffold couplers

EN 39 Loose steel tubes for tube and coupler scaffolds BS 1139 Metal scaffolding Steel Grade:

GB/T 13793, GB/T 6728, GB 15831: Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 EN 10210, EN 10219, BS 1387: S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST52

ASTM A500, ASTM A 53: Gr.

A, Gr B, Gr C, Gr.

D, DC01, DC03, 1008, 1010

JIS G 3466: SS330, SS440, SS490, SPHD, SPHE Process: ERW and Seamless Size:

Hollow Sections: Square: 10 mmx10mm - 500 mmx500mm

Retangular: 10mm x 20mm - 600mmx400mm

Round: 1/8" - 4" Wall Thickness: 0.5 - 20.0mm

Length: 0.3 mtr - 18 mtr as customer required Scaffolding Tube: Outer Diameter: 38mm, 42mm, 48.3mm-48.6mm Wall Thickness: 2.0mm, 2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.85mm, 4.0mm Length: 0.3mtr -18 mtr Process: Seamless: Hot Rolled, Hot Explored

Welded: ERW, HFW

Coating: Hot-dipped Galvanised, Electrical Galvanised Raw Material: Seamless: Pipe Billet( Hot Rolled, or Con-casting), Mother Pipe

Welded: Hot Rolled Steel Coil (HRC), Cold Rolled Steel Coil (CRC), Pre-pained Galvanized Steel Strip End: Square cut, Burr removed

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black Heat Treatment: Bright Annealed, Black Annealed Packing: Plastic plugs in both ends, Hexagonal bundles of max.

2, 000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection

Mill Test Certificate: EN 10204/3.1B
