High Wear Resistance Against Abrasive Alloy Tool 1 2080 Steel - China

D3 steel also knows as DIN 1.2080 and JIS SKD1, which is a 12% chrome alloy steel.

JIS SKD1 steel has very high wear resistance against abrasive and adhesive wear due to the high volume of hard carbides in the steel matrix, medium toughness, dimensionally stable, high compressive strength, not secondary hardenable.

D3 steel composition and more information as below.

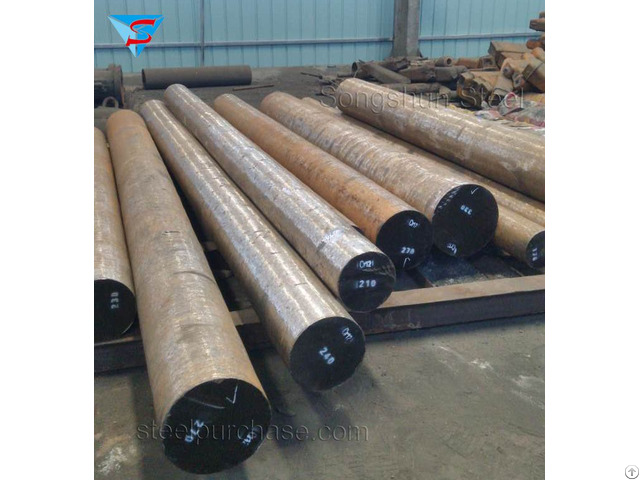

D3 Steel Round Bar Sheet Plate Heat Treatment

Heat Treatment

SKD1 steel requires hardening and tempering to achieve maximum properties.

For maximum accuracy, the parts of SKD1 tool steel should be stress relieved after roughing operations.

Stress should be relieved at 648°C (1200°F) for one hour and cooled slowly.

Annealing

Annealing of SKD1 steel needs to be done in a controlled atmosphere furnace.

D3 steels should be heated thoroughly to 871°C (1600°F) and cooled slowly at a rate of not more than -6°C (20°F) per hour, until the furnace is black.

Then the material should be removed and air cooled.

Tempering

The SKD1 steel should be cooled to room temperature and should be tempered immediately.

The parts should be placed in the tempering furnace and increased slowly to the desired tempering temperature.

Tempering for 1 hour per inch of thickness is required.

Hardening

SKD1 steel should be heated properly since it is very sensitive to overheating and if not heated maximum hardness cannot be achieved.

The work should be directly placed in a furnace preheated to 954°C (1750°F) and soaked for 20-25 minutes, plus 5 minutes per inch of thickness, and then oil-quenched to harden it.
