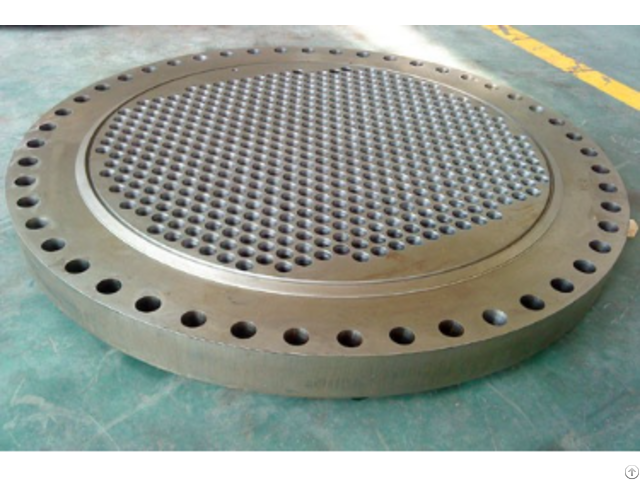

Heat Exchanger Fixed Floating Tube Sheet - China

We can manufacture DN 15–5000 diameter tube sheet products with GB standard, American standard, Japanese standard, European standard, and non-standard flanges.

Products are widely used in petrochemical engineering, food, metallurgy, construction, electric power, and other machinery.

Product quality and yield have made a qualitative leap.

Tube plate is a circular plate on the drill.

The pipe diameter is slightly larger than the same hole.

If the strength (or stability) conditions cannot be met in the calculation of fixed tube plate at various working temperatures to calculate casing axial stress, heat pipe axial stress, and pipe plate pull-out force Q, an expansion joint must be set.

In the fixed tube plate strength calculation, when the tube plate thickness is determined, no expansion joint, or sometimes a tube plate set expansion joint, has enough strength; the tube plate thickness could meet the requirements.

At this point, it can also be set up to reduce the expansion section of the thin tube plate, but not at the expense of material consumption, manufacturing, safety, economic results, or other comprehensive evaluations.

Because of its simple and compact structure, good compensatory properties, and low cost, a fixed tube plate heat exchanger is widely used in U-type expansion joints.

The tube plate machining accuracy, especially the tube hole spacing and diameter tolerances, verticality, and smoothness, have a great impact on the above-mentioned assembly and use performance of chemical equipment.

With the chemical equipment and large power stations, the diameter of the tube plate is becoming larger and larger; the diameter of the tube plate is very common, 4m-5m.

Large tube plate has a high number of tube holes as well as requirements for a dense, small, deep, precise, and smooth finish.

Tube plate usage The tube plate is widely used in heat exchangers, boilers, pressure vessels, steam turbines, and large central air-conditioning industries.

Mainly used for chemical containers such as heat exchangers, pressure vessels, boilers, condensers, evaporators, central air conditioning systems, and desalination systems, supporting fixed tubes are made of metal material, which not only has strong rigidity but also have great heat conduction performance.

Tube sheet material Depending on the environment, the use of different materials, and the general use of Q345R containerboard, such as one or two pressure vessels, no corrosive media flow, using carbon steel composite plate, Strong, high-temperature, and high-pressure environments, such as those found in nuclear power plants, necessitate the use of 16-gauge stainless steel, manganese, the corrosion resistance of titanium alloy material, and the incorporation of new synthetic materials into tube plate products.

Tube sheet processing For tube plates, three or four types of pressure vessels need high precision; the hole processing method is the traditional fitter, the rocker drill.

With the large-scale chemical container, the diameter of the tube plate is also increasing, as is the thickness, and the tube sheet is also being introduced into numerical control technology, with the use of CNC drilling holes and rocker drilling hole processing.

The use of machining centers to do high-efficiency and high-precision machining has gradually been accepted by a number of large enterprises.

Large, thick tube plates are in high demand in nuclear power, seawater desalination, and the central air conditioning heat exchanger area.
