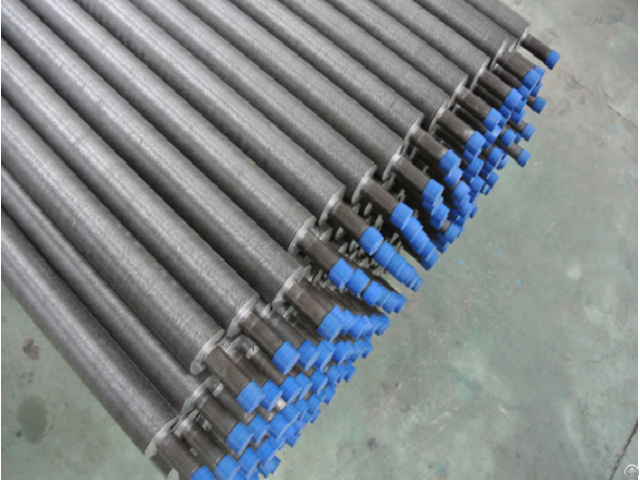

Embedded G Type Finned Tube - China

The fin strip is wound into a mechanically produced groove and tightened by backfilling the base material under pressure.

Groove depth appr.

0, 4 mm.

Advantages: High fin stability, excellent heat transfer, and high operating temperature.

Material Combinations:

- G Fin Tube Core Tube: Carbon steels, low-alloy steels, stainless steels, brass, copper, copper-nickel alloys, aluminum bronze, nickel-alloys (Alloy 400, etc.

), bimetal, titanium, and others

- G Fin Tube Fins: Aluminium, Copper, Steel, Galvanized Steel Fields of Application:

- Petroleum, chemical, and petrochemical industries

- Natural gas treatment

- Steel industry: blast furnace and converter systems

- Power generation: steam turbine exhaust condensing (contact condensing with cooling of circulating condensate)

- Fossil and nuclear power plants

- Air conditioning (freon, ammonia, propane)

- Incineration of household refuse

- Compressor coolers, etc.

Manufacturing Process:

The manufacturing tool is made up of 2 non-cutting plates set at 90° to the axis of the base tube.

The first plate affects a groove for metal spinning.

The second directs the ribbon in the groove and sets the fin foot in the groove through pressure on the metal displaced for the groove.

A similar plate made of tungsten carburetor allows us to manufacture G-finned tubes with base tubes made of austenitic steel or exotic alloys.

Advantages:

1) G Fin Tube Thermal

The fin/tube wall contact is constant because of the setting and makes it possible to use a wall temperature of up to 400° C.

2) G Fin Tube Mechanical

The fin is set throughout its length and consequently does not unwind even when partially uprooted.

In order to forward you a prompt offer we would be pleased to receive your detailed inquiry containing the following:

- Base tube material and quantity

- Base tube size

- Fin material

- Fin type

- Fin diameter or height

- Fin thickness

- Fins per inch, meter, or fin pitch

- Length of plain, unfinned ends (necessary to roll or weld the tubes into tubeplate or assembly)

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
