Elliptical Tube With Rectangular Fins - China

Elliptical Fin Tube|Elliptical Tube With Rectangular Fins| Hot dipped galvanized oval fin tubes

This fin tube design utilizes an elliptical-shaped tube with an efficient airfoil shape to minimize airside flow resistance.

These fins have improved performance characteristics compared to round tube types.

The corrosion resistance of these fins will be very high after being hot dip galvanized.

These fin tubes are very compact compared to other types of fin tubes and their heat transfer efficiency is significant.

In manufacturing these fin tubes in our company, first, the punched fins are filled automatically on elliptical tubes.

Thereafter, the fins on both ends of the tubes are fixed, and the fins are connected to the tubes by two different methods.

The first one is by fixing the fins to the tubes by the mechanical expansion of the elliptical tubes.

In the second method, the tubes are dipped in melted zinc tanks.

The gap between the fin and the core tube is filled by zinc.

Elliptical Finned Tube; Oval Finned Tube The maximum working temperature in these fins is 400°C.

Advantages of These Fin Tubes:

It has a very long life compared to other fin tubes.

The steel fins are not sensitive to typical mechanical loads, for example, hailstorms or walking on the bundles.

Hot dip galvanization provides corrosion protection.

No-flow regions are avoided by different first and second-row fin pitches.

Simple cleaning using high-pressure water.

Compact design with a high extended surface area ratio.

Tube matrial Fin material

- Carbon steel - Copper

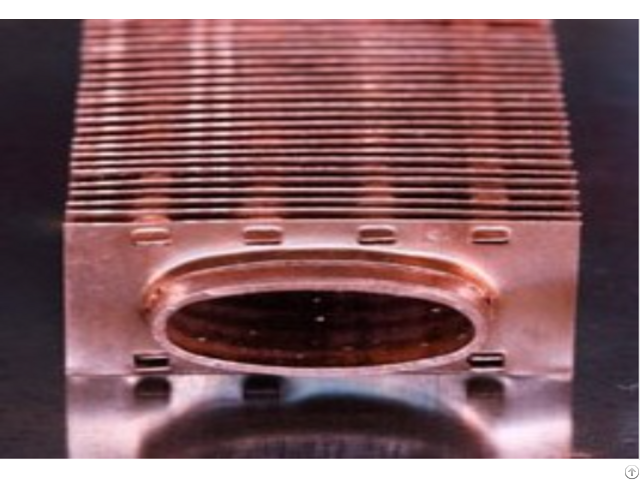

- Stainless steel Oval Copper Tube with rectangular Copper Fins Oval Copper Tubes are manufactured with a rectangular copper fin, which significantly increases the heat transfer surface area around the oval tube.

In order to forward you a prompt offer we would be pleased to receive your detailed inquiry including the following:

- Base tube material - Base tube size (OD x WT x Length)

- Fin material

- Fin type

- Fin diameter or height

- Fin thickness

- Fins per inch, meter, or fin pitch

- Length of plain, unfinned ends

- Finned Tube Quantity

(Additional fabrication, such as bending or welding the tubes into tubeplate or assembly)

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
