Coiled Steel Tube - China
price: 50.00 Dollar US$

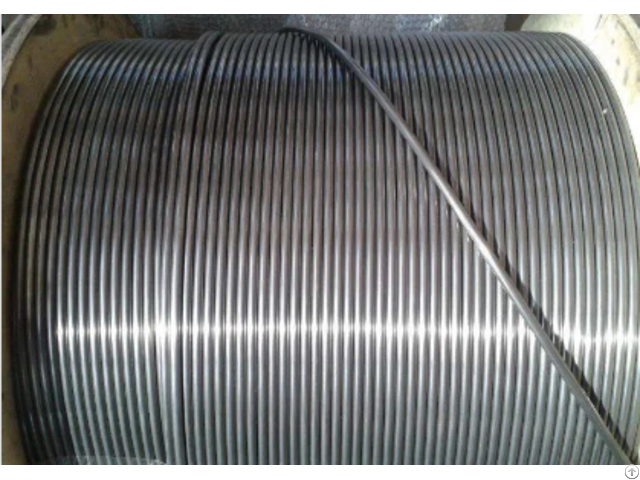

Coiled Stainless Steel Tubing
Coiled tubing allows for the installation of long-length tubes without the need for joining fittings.
This reduces installation time and costs as well as eliminates potential leak points.
PAC Stainless stocks both seamless (ASTM A269/A213, ASME SA213 average wall) and welded (ASTM A269/A249) tube coils to meet the needs of petrochemical, CNG, geothermal and flow measurement applications.
LENGTH CAPABILITIES
TS Stainless can provide coiled tubing in long mill lengths that stretch over a mile, or in custom cut-to-length sections as short as fifty feet.
Short, long, and everything in between – let us be your preferred source for coiled stainless steel tubing products.
Welded Coil Tube (BA Tube)
- Material: TP304/304L, 316/316L, 201, 202, 310S, 321, 800, 600, etc.
- Tube delivery condition: bright annealing (BA)
- Tube type: Weld, TAW
- Coil Lengths: max 3000m per coil tube
- Standard: ASTM A269, ASTM A249
- O.
D: from 3 to 25.4mm
- W.
T: from 0.3 to 2.0mm Chemical composition:
Grade C Mn P S Si Cr Ni Mo
304/L 0.035 2.00 0.045 0.30 1.00 18.00-20.00 8.00-12.00 N/A
316/L 0.035 2.00 0.045 0.30 1.00 16.00-18.00 10.00-14.00 2.00-3.00 Mechanical and technical properties:
- In accordance with ASTM A269
- Soft annealed max.
Hardness 150 HV10 Tolerance +10 points Model type and surface integrity:
- In accordance with the same standard A269
- Surface roughness: Ra <5μm Cleanliness of the tubes:
Bore cleanliness in accordance with DIN 8905 - The coils shall be dry, clean, and free from swarf, drawn, and roller marks.
Pressure Test:
100% tested at the appropriate pressure stated under water.
All coils must be flushed and dried after pressure testing to avoid contamination.
Tolerance:
D4/T4, Diameter of the ball for ball bearing check Hot Tags: coiled steel tube, China, suppliers, manufacturers, price
Company Contact:
- Posted By: Shanghai T.S. Industrial Co.,Ltd
- Phone: 8615607960723
- Address: No.2, Lane 1588 Youyi Road, Shanghai , China
- Email:
- Website: https://www.lordfintube.com
Published date: November 16, 2022
- Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.
We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.
With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.
The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.
Fin tubes or called finned tubes are a major component for various heat recovery systems.
The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.
T.S. Industrial Supply and produce to custom requirement finned tubes.
For high-frequency resistance welding finned tube.
The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.
For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.
Typical product, we also produce extruded serrated finned tubes.
For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.
In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.
Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.
T.S. Industrial privately owned company and finned tube manufacturer.
We are not owned by, nor do we own, any steel producers.
Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.
T.
S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.
Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.
Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.
We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
