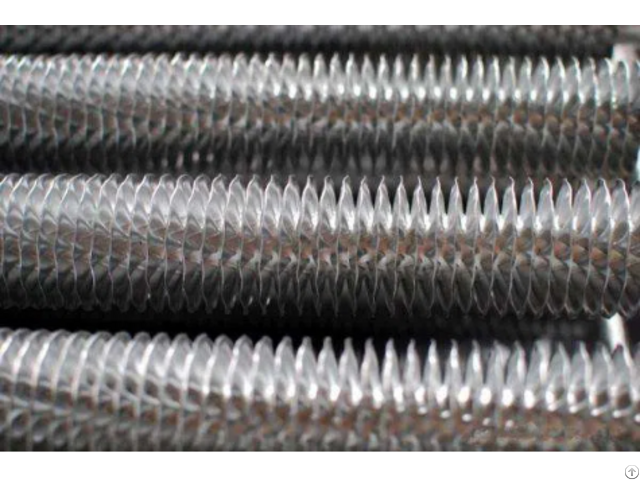

Bimetallic Finned Tube - China

The bimetallic tube is composed of two different materials: usually inner material is a corrosion-resistant alloy (copper, aluminum-brass, titanium) whereas the outer material is a high-stress-resistant alloy (stainless steel, carbon steel, titanium).

It is, however, possible to manufacture bimetallic tubes with any material combination.

In applications with high pressures and corrosive conditions, a bimetallic tube permits large economical savings in comparison with a tube made of a single alloy, since the use of precious materials is reduced to the minimum.

Bimetallic tubes offer an excellent technical and economical solution for the production of high-performance heat exchangers with high stress and corrosive conditions.

TS developed and patented an innovative method for manufacturing bimetallic tubes assuring an excellent quality level at a competitive price.

Bimetallic tubes offer an excellent technical and economical solution for the production of high-performance heat exchangers with high stress and corrosive conditions.

The bimetallic tube is composed of two different materials: usually inner material is a corrosion-resistant alloy (copper, aluminum-brass, titanium) whereas the outer material is a high-stress-resistant alloy (stainless steel, carbon steel, titanium).

It is, however, possible to manufacture bimetallic tubes with any material combination.

In applications with high pressures and corrosive conditions, a bimetallic tube permits large economical savings in comparison with a tube made of a single alloy, since the use of precious materials is reduced to the minimum.

APPLICATIONS - BIMETALLIC TUBES The common application fields are:

- Heat exchangers for power plants (electric, nuclear, thermal, and geothermal power plants)

- High corrosive systems (condensers, evaporators, seawater desalination, fertilizing, urea systems, ammonia, gas, corrosive acids)

- Chemical and petrochemical industries

- Food processing and refrigeration industries In the process of manufacturing Extruded Fin Tube, a Muff Tube (Outer) and a Base tube (Inner) are used.

The base tube is inserted inside the muff tube.

Then the fining is done by extruding the fins from the Muff Tube.

During the process, the muff tube forms a very strong bond with the Base tube ensuring almost no air gap or non-contact area between the Muff Tube and the Base Tube.

Extruded Bimetallic Finned Tube is combined with the same tube and fin materials of aluminum or two different materials.

The finned tube is composited with iron-aluminum or copper-aluminum tube rolling out the fin, which feathers are tightness, small heat resistance, good heat transfer performance, high strength, small flow losses, strong corrosion resistant performance, not easy to deformation and a long working lifetime in cold and hot condition, etc.

According to user needs, we can produce all kinds of steel strip winding finned tubes and steel aluminum composite finned tubes.

As the heat transfer element finned tube works long-term in high temperature and flue gas conditions, such as finned tube in the boiler heat exchanger which uses conditions are as high temperature and high pressure and corrosive atmosphere should have high-performance metrics and they are as follows: Anti-corrosion, Anti-wear, lower contact resistance, Higher Stability, Anti-dust stratification.

Features: - Lightweight

- High strength - Dimensional accuracy

- Weather resistance nature - "L" Wrap-on Fins: The aluminum strip foot section is first formed into an L shape and then tension wrapped onto the base tube.

Wound fin base sections are close to each other so as ensure a continuous cover over the primary tube surface.

Finally, the fin strip is fastened at the ends to prevent loosening.

- Knurled "L" Fins: An aluminum strip is folded to form an L shape and then wound around the base tube.

The feet of the fins are joined together and cover the whole of the tube surface.

The root of the fin is simultaneously knurled with the inner tube ensuring tight contact between the fins and tube.

- "G" Embedded Fins: The fin consists of an aluminum strip whose foot edge is tension wrapped and embedded into the primary tube wall.

- Bimetallic Extruded Fins: A core tube or liner is fitted into an aluminium primary tube.

This tube-in-tube assembly is then fed into the finning machine equipped with three spindles.

The gang discs which are stepped in profile and diameter will first extrude and shape the fin properly and then shrink-fit the primary tube on its liner.

Hot Tags: bimetallic finned tube, China, suppliers, manufacturers, price

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
