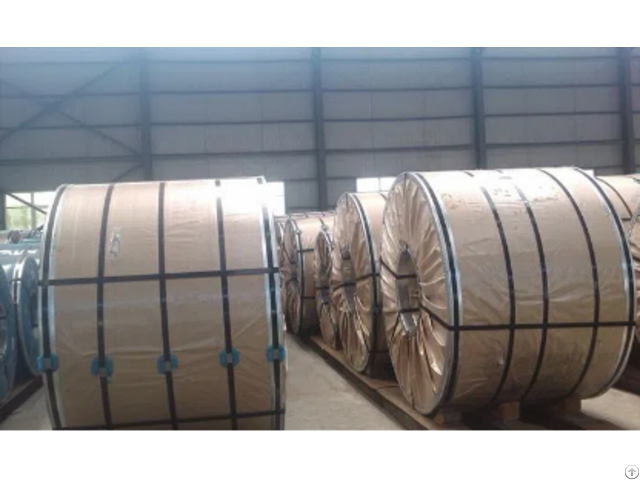

Stainless Steel Coil 304 - China

Stainless steel coil has excellent resistance to acid, heat, and corrosion resistance, making it an ideal basis for the commercial application of materials.

The range of stainless steel coil can be divided into 300 series and 400 series, the former belongs to nickel, with a capacity of more than 85%, which is chromium, the use of a smaller amount.

304 Stainless Steel is the most widely used austenitic (chromium/nickel) stainless steel.

In the annealed condition it is essentially non-magnetic and becomes slightly magnetic with the application of cold work.

Type 304L Stainless Steel is preferred in welding applications to exclude the formation of chromium carbides during cooling in the heat-affected region of the weld.

These alloys represent an excellent combination of corrosion resistance and fabricability.

PRODUCT FORMS: Sheet, Strip, Coil SPECIFICATIONS: Type 304 – ASTM A240, ASTM A666, AMS 5513; Type 304L – ASTM A240, ASTM A666, AMS 5511 Product Spec

Type Int'l Standard Steel Designation Main Chemical Compositions Mechanical Properties Cr Ni Mo Proof Stress (N/mm2) Tensile Strength (N/mm2) Elongation HRB 304 ASTM A240-96 UNS S30403 18.00 ~20.00 8.00~12.00 ≧ 170 ≧ 485 ≧ 40 ≧ 92 304 ASME SA240-95 UNS S30403 18.00 ~20.00 8.00~12.00 ≧ 170 ≧ 485 ≧ 40 ≧ 92 304 CNS G3163-93 304L 18.00 ~20.00 8.00~13.00 ≧ 175 ≧ 480 ≧ 40 ≧ 90 304 JIS G4303-91 SUS 304L 18.00 ~20.00 8.00~13.00 ≧ 175 ≧ 480 ≧ 40 ≧ 90 304 EN 10088: 1995 1.4306 18.00 ~20.00 8.00~12.00 ≧ 200 500 ~ 650 ≧ 45 304 DIN 17440: 1996 1.4306 18.00 ~20.00 8.00~12.00 ≧ 180 460 ~ 680 ≧ 40 Commonly used specification of Stainless Steel CoilHOT ROLLED STAINLESS STEEL COIL Thickness Width Surface 3.0mm ~ 8.0mm 1220MM ~ Max.

1540mm NO.

1 COLD ROLLED STAINLESS STEEL COIL Thickness Width Hardness 0.1mm ~ 0.4mm Could be negotiable for small strips, max.

300mm 1/4H ; 3/4H ; 1/2H ; FULL HARD 0.5mm ~ 3.0mm 1220mm ~ Max.

1540mm GRADE

- Grade 304/304L (UNS S30400/S30403, EN 1.4301/1.4307)

- Grade 316L (UNS S31603, EN 1.4404)

- Grade 409L (UNS S40900, EN 1.4512)

- Grade 430 (UNS S43000, EN 1.4016)

- Grade 441 (UNS S44100, EN 1.4509) STANDARD

- ASTM A240M – Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and General Applications.

- ASTM 480M – General Requirements for Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet and Strip PACKING

- Standard Coating: Paper Interleaved, PE or Laser PE Coating are available

- Standard Package: Cardboard encase the ends of the coil, with core and outer steel edge protection.

Metal Straps are to be placed around coil and pallet timber, and align with metal edge protection

- Eye to Sky and Eye to Sides packages are both acceptable

- Wooden Pallets or customized Pallets are acceptable Hot Tags: stainless steel coil 304, China, suppliers, manufacturers, price
