Hygienic Tube - China

Stainless Steel Hygienic Tube & Fittings

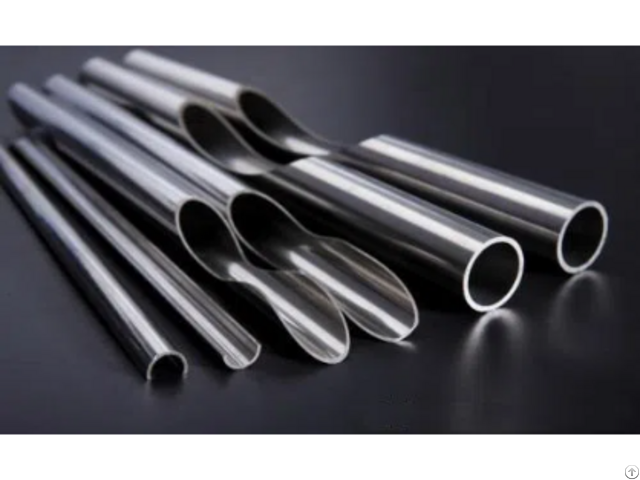

Hygienic Tube To complement the hygienic fittings range, DPL also stocks a full range of hygienic tubes.

Manufactured from premium grade 316L Stainless Steel which also complies with BS4825, the tube is suited to many industry sectors.

These sectors include Dairy, Food, and Beverage, Pharmaceutical, and Chemical.

Available in 6-meter lengths, the tube has a food-grade internal finish and an external dull polish in order to meet the high expectations of the hygienic industry.

Tube lengths can also be cut to suit individual requirements.

Our Tube:

Complies with BS4825 to ensure maximum compatibility with your process system.

A wide range of tube OD sizes is available to suit your application (see Table below) Tube lengths cut to order for ease of shipping etc Fully annealed option to ensure ease of fabrication and manipulation if required Full certification is provided on request thus providing full traceability.

Hygienic Tube and Fittings What is Hygienics? Stainless Steel Hygienics is the name given to a range of tubes and fittings used in applications requiring a clean and sanitary flow of liquids and where it is essential to avoid contamination of the products being carried.

These applications cover the food processing, beverage, biotech, and pharmaceutical industries including breweries and dairies.

The applications are low pressure with a maximum of 150lbs.

The products are available in grades 304L and 316L.

The size range is from ¾ inch to 4-inch O/D plus there are some metric sizes to DIN Standards.

The tube and fittings are of welded construction with the internal bead rolled to flatten it and eliminate crevices, thus preventing interruptions to the flow and eliminating the risk of contamination or bug traps as well as facilitating easy cleaning.

The tube and fittings are offered with a choice of external finishes:

- Descaled

- Bright Annealed

- Dull Polished

- Semi-Bright or Bright Polished.

Hygienic tubes are manufactured to ASTM A270, DIN 11850, ISO2037, and BS 4825 Part 1.

Hygienic fittings are manufactured to BS4825 Parts 2 to 5 - (EN20286)

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
