Hot China Supplier Of Wedge Wire Filter Stainless Steel Water Well Screens - China

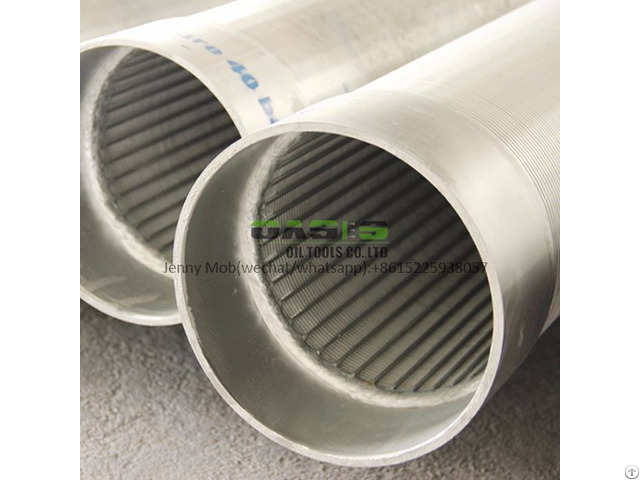

Description of water well screens

1 - Grade: SUS201, SUS304, SUS316, Duplex2205, 2507, 3507, SUS906 2 - Stainless steel tube Size: 1.050" to 4"1/2 3 - Stainless steel casing size: 4"1/2 to 20" 4 - The thickness for the tube: 2.87mm to 16mm 5 - The thickness for the casing: 5.21mm to 20.24mm 6 - Standard: API 5CT, ASTM A312, API 5L 7 - Certification: ISO9001, SGS, CTI, ROHS, BV, DIN, GB, JIS, BA, ANSI 8 - The threads type: STC 9 - Length: 5.8meters 10 - Application: water/oil filter, oil wells, water wells, gas well, the chemical factories using 11 - Certification: BV 12 - The characteristics of the wire and rods: The welded stainless steel water well screen is made up of rods and wires.

The rods can be round, triangular and trapezoid wire.

The wire is triangular wire we also called v-shaped wire.

13 - The characteristics of the slot: the structure of the water well screen with high open area, as well as accurate dimension.

14 - Other characteristics of the water well screens: heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics.

It can be used in many kinds of medium filtering.

SPECIFICATIONS OF OUR JOHNSON WEDGE WIRE SCREENS

Name

Stainless Steel Wire Wrapped Johnson Screen Pipe for Water Well Drilling

Material

Galvanized carbon steel(LCG), stainless steel (304, 304L, 316, etc.

)

Diameter

From 30-1500mm /(114.3mm- 4 1/2”, 168.3mm-6 5/8”, 219.1mm- 8 5/8”, 244.5mm- 9 5/8”, )

Slot Size (mm)

0.02mm-15mm or as customers’ requirement

Unit length

1- 6m, 5.8m fit for the container

Surface

Galvanized, painted, polish, packiled and passivation, etc.

Wedge wire

Width(mm): 1.20 1.50 2.00 2.20 3.00 3.00 3.20 4.00 4.00

Height(mm): 2.20 2.50 3.00 4.50 5.00 6.00 6.50 7.00 7.50

Support rod

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

End

Welding (beveled end), thread coupling(STC, LTC, BTC), flange

Notes

Wires, rods and slots sizes can be customize.
