Slide Gate System - China

Simple Operation & Convenient Repair Slide Gate, Convenient Replacement Slide Gate Supplier

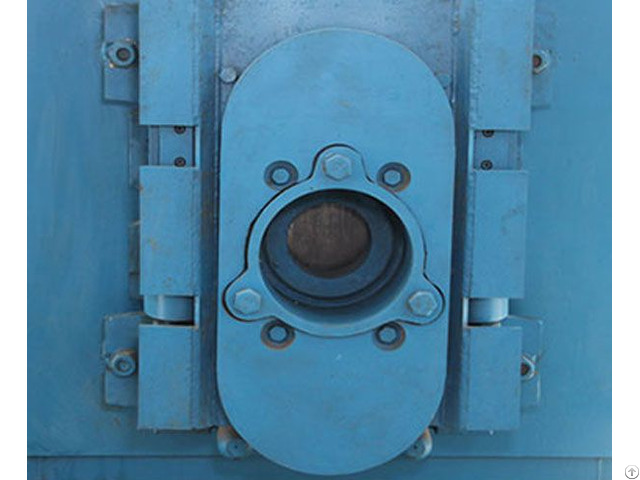

Converter Skateboard Blocking Ladle Slide Gate System For Furnace

The old converter finished the slide gate stopping slag’s application through tapping modification.

Stopping slag with slide gate is successful which can reduce the cost of production.

Description

The old converter finished the slide gate stopping slag’s application through tapping modification.

Stopping slag with slide gate is successful which can reduce the cost of production.

Slag tapping amount can be controlled around 40 mm, which provides requirement for the production of variety of steel.

1 - Higher than 98% slag stopping rate, effectively reducing the average slag thickness of ladle, slag thickness≤40mm(no synthetic slag)

2 - Simple and rational structure, safe and reliable use, simple operation and convenient repair and replacement

3 - Device closing speed≤1 second;

4 - The skateboard replace time≤15 mins /time (no inner nozzle brick, No manipulator);

5 - The skateboard and outside nozzle average service life ≥12 times(no flow control)

Inner nozzle average service life ≥40 times (synchronize replaced with tapping hole);

average service life ≥24 times(replace alone);

Application

To reduce the slag quantity in the process of the tapping is important part to improve the quality of molten steel.

Yuntian is a leading manufacturer of slag dart machine, slide gate plate and slag stopping ball in China.

If you want to know more about the products, you can contact us or visit our factory.

We will use our professionalism to provide you with quality service.
