Palisade Fencing Overview - China
price: 500.00 Dollar US$
Palisade Fencing is an important member of security fencing.
It is manufactured by corrugated sheet in "W" or "D" section or angle section with offensive heads and assembled by welding or anti-vandal bolts or rivets.
Compared to chain link fencing, it is impossible to climb and break off in short time.
Two palisade security fencing panels, one white painted W-section pales on blue rails, and another green painted W-section pales on green rails.
"W" section palisade fencing can be painted in various colors.
Palisade security fencing panel with white and blue painted W-section pales on black rails.

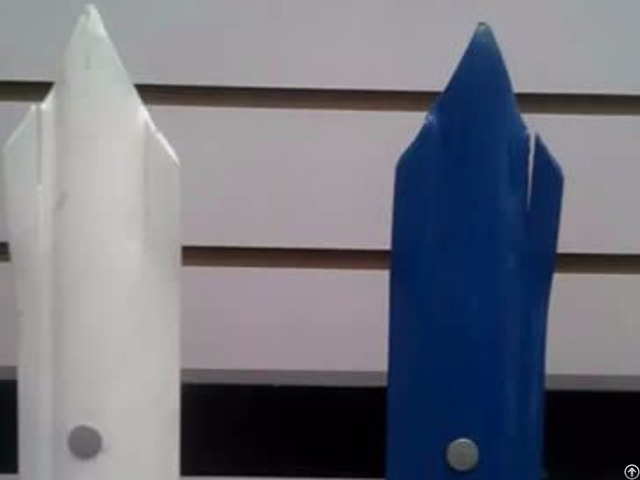

Palisade fencing with white and blue painted pales.
Company Contact:
- Posted By: Paulta Palisade Fencing Co., Ltd
- Phone: +86-318-78559873
- Address: East Industrial Zone, Anping, Hebei, China., Hengshui , Hebei , China
- Email:
- Website: https://www.palisade-fencing.com
Published date: May 2, 2017
- Business Description: High Security Palisade Fencing - the Enemy for All Intruders
High security palisade fencing with w-section pales, RSJ points and green powder coating
High security palisade fencing
With the increase of crime rate, people are looking for a safe perimeter fencing which can resist thefts, threats, intruders in an effective way.
Given the better performance in security assets and personal, high security palisade fencing has become the premium security alternative for places like commercial, industry and schools.
Compared with general purpose palisade fencing, anti-climb security palisade fencing is higher in height, thicker in thickness and w-section pales are used.
Heights for security palisade fencing are 3.00 m or 3.6 m besides the palisade fencing installed on the wall.
High security palisade fencing description:
Item: high security palisade fencing.
Standard: EN BS 1722-12: 1990.
Head Styles: one pointed, triple pointed, rounded, rounded & notched, square.
Pale Sections: W-section & D-section.
Height: 3.0 & 3.6m.
Thickness: 3.0mm (w-section) & 3.9mmm(d-section).
Surfac e Treatment: galvanised & powder coated in any color.
NOTE: high security palisade fencing is also sold in assemblies - 2.75m/unit.
Without special order, the palisade fencing includes fencing, posts, rails, bolts and other accessories.
Please go to palisade overview of palisade fencing assembly to find the details.
Table 1 - Dimensions for security palisade fencing with posts at 2.75m centers
Item Fence height above ground (m) Posts Horizontal rails (rolled steel angle section) (mm) Pales
Rolled steel joist section (mm) Embedded length (mm) Corrugated sheet thickness (mm)
SP30 3.00 127 × 76 925 50 × 50 × 6 See Table 2
SP36 3.60 127 × 76 1125 65 × 50 × 6
Table 2 - High security palisade fencing pale head styles
Pale Profile Thickness (mm)
Corrugated "W" section 3.0
Corrugated "D" section 3.9
Five types of palisade pale heads
Palisade pale head types
W-section palisade fencing pale profile
W-section palisade paleD-section palisade fencing pale profile
D-section palisade pale
High security metal palisade fencing with razor wire on the top.
Steel palisade fencing integrating with razor wire on the top making a very threatening fencing for the intruders.
A transformer surrounded by palisade fencing.
Palisade secure fencing can be used to isolate dangerous equipment like transformer from the surroundings in case of incidents.
