Abrasive Steel Shot 1mm - China

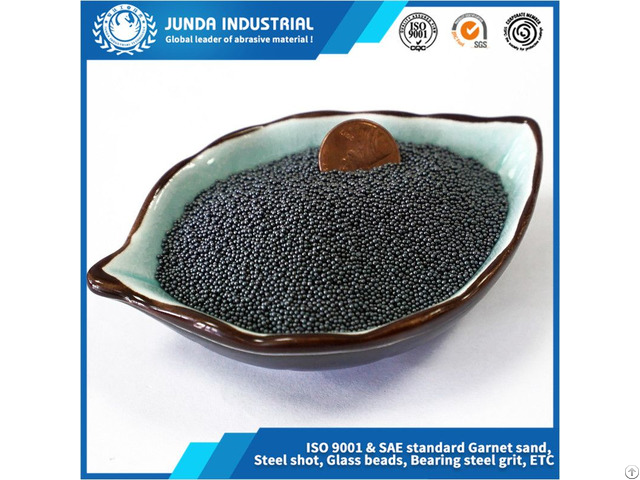

steel shot 1mm 1 - Steel shot picture 750800 (9) Steel Shot is manufactured by melting selected scrap in electric induction furnace.

The chemical composition of molten metal is analyzed and strictly controlled by spectrometer to obtain SAE Standard specification.

The molten metal is atomized and transformed into round particle and subsequently quenched and tempered in a heat treating process to obtain a product of uniform hardness and microstructure, screened by size according to SAE Standard specification.

2 - Steel Shot Specification Project National Standards Quality

Chemical composition% C 0.85-1.20 0.85-1.0

Cr 0.26% 0.26%

Si 0.40-1.20 0.70-1.0

Mn 0.60-1.20 0.75-1.0

S <0.05 <0.030

P <0.05 <0.030

Hardness steel shot HRC40-50

HRC55-62 HRC44-48

HRC58-62

Density steel shot ≥7.20 g/cm3 7.4g/cm3

Microstructure Tempered Martensite or Troostite Tempered Martensite Bainite Composite organization 3 - Steel Shot Production Procedure 1 Smelting ( steel scrap + alloy) 2 Forming 3 Drying 4 Screening (separate the SAE shot size from the oversized shot particles used for grit production) 5 Selection(remove irregular shaped shot) 6 Quenching (produce superior particle integrity with minimal stress cracks) 7 Tempering 8 Screening 9 Packaging (25 KGS per one small pp bag)

3 - Forming 750*8006 - Selection 750*800 4 - Steel Shot Applications shot blasting Fettling cleaning the casting sand and burnt -on sand of the casting to make the surface get good cleanliness and required roughness, so that can be benefit to the subsequent processing and coating.

Steel plate surface preparation Cleaning the oxide skin, rust and other impurity by shot Blasting, then using the vacuum cleaner or the purified compressed to clean up the steel products surface.

new-beads blasting (3)750 800 (54) 5 - Steel Shot Certificate 750800Cr750 800 (24) 6 - Steel Shot Normal Packing 1).

25kg (55lb) per bag, then 40 bags put in a 1000kg (2200lb) bulk bag.

2).

25kg (55lb) per bag, then 40 bags shrink wrapped onto a 1000kg (2200lb) pallet.

3).

1000kg (2200lb) loose in one ton bulk bag.

750800 (12)750800 (80) 7 - FAQ Q: What payment terms do you support? T/T: 50% advance payment, then please pay us the rest 50% payment when get the scanned B/L via E-mail L/C: 100% irrevocable L/C at sight.

Q: What's the MOQ.

of your products? Our MOQ.

5 ton .

Or as your requirements, we calculate the new price for you.

Q: Can you provide free samples? Yes, we can send free samples less than 500g to you.

Q: What standards are you carrying out for your products? SAE standard, ISO 9001, SGS Q: Can you pack the cargo as our requirements? Yes, we can pack the products as request.

8 - Main products We are the manufacturer of abrasive media for more than 14 years experience in China.

Abrasives media we manufacture: Steel grit Steel shot Glass beads Garnet new-glass beads (3) 9 - Team and customers IMG_2412new 750x800 (16) If you need more details, please contact with us any time agnes

Company Contact:

• Posted By: JiNan junda Technology Co., Ltd

• Phone: +8613064096500

• Address: No.365 ,The Second Jing Road, Huaiyin District ,, JiNan City, shandong , China

• Email:

• Website: http://www.jnjunda.com

• Business Description: Our main product are steel grit, Steel Shot ,Garnet sand and Cut Wire Shot .

  We have professional research term and strong R&D strength , well-equipped testing equipment and strong technical force.

  With a wide range, good quality, reasonable prices, our products are extensively used in Casting, Mechanical, Shipbuilding, Automotive, Locomotive, Container, Steel and other industries.

  and continuously meet the high-end the customer to the product surface treatment effect and improve the working efficiency, reduce the cost of multilateral needs; the company also provides comprehensive technical support and services, provide the overall technical solution for user.

  So customers more than 60 countries all over the world.

  Hoping for your inquiry.
