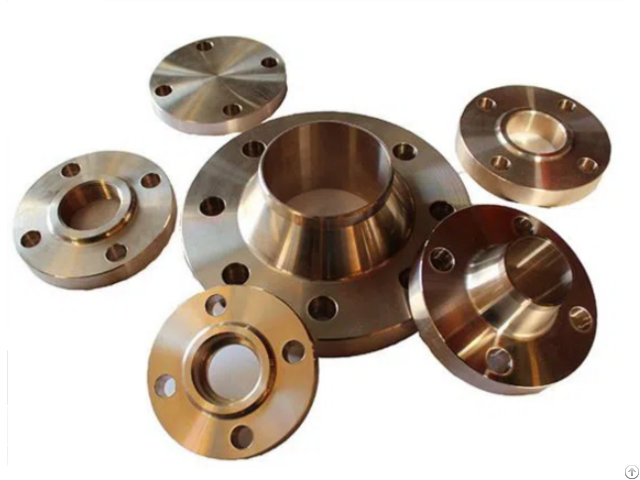

Copper Nickel Flange - China

TS maintains a broad inventory of Copper Nickel C70600 (90/10) and C71500 (70/30) flanges.

Copper Nickel has proven to be very resistant to seawater, brine water, organic compounds, salts, diluted non-oxidizing acids, and more.

Due to a high resistance towards marine organisms such as barnacles, Copper Nickel is commonly used in seawater piping systems.

TYPICAL APPLICATIONS

- Seawater piping systems

- Pressure vessels piping outlets FLANGES FOR C70600/C71500

- inner flange composite slip-on flange-

- blind - socket weld - threaded - slip on - inner flange composite weld neck flange

- weld neck Copper Nickel Flanges Standard Table

TS Copper Nickel Flanges

COPPER NICKEL FLANGES TYPES MATERIAL EEMUA DIN ANSI

COMPOSITE WELD NECK INNER CuNi 145 86037 COMPOSITE WELD NECK BACKING Carbon steel 145 86037 COMPOSITE SLIP ON INNER CuNi 145 86036 COMPOSITE SLIP ON BACKING Carbon steel 145 86036 SOLID WELD NECK CuNi 145 2632/2633 B 16-5

SOLID SLIP ON CuNi 145 86033 B 16-5

SOLID BLIND CuNi B 16-5

SOLID SOCKET WELDING CuNi B 16-5

THREADED WELDING CuNi B 16-5 DIN standard flanges are the most common standard in shipbuilding.

There are four main standards as below:

- DIN 86037 Composite Weld Neck Flanges

- DIN 86036 Composite Slip-On Flanges

- DIN 86033 Copper Nickel Slip On Flanges

- DIN 2632/2633 Copper Nickel Weld Neck Flanges

The pressure rate in DIN is 10 bar and 14 bar.

Material: it can be named CW352h and Cuni10fe1.6mn.

The DIN standard material requirement like tolerance is stricter than other standards.

EEMUA 145 standard copper-nickel flanges are normally used on marine and offshore structures.
