Mpe Parallel Flow Aluminum Flat Tube - China

Parallel flow aluminum flat tube

Our nineteen holes aluminum flat tube is widely used for parallel-flow aluminum flat tubes.

Like evaporators, air conditioners, condensers, heat exchangers, freezers, oven gas, boiler, and so on.

- Material: 1050, 1060, 1070, 3003, 3103, 3013, etc.

- Temper: O-H112, H112, F - Normal specification: 4.0x0.5mm, 6.0x1.0mm, 7.0x1.0mm, 7.94x1.0mm, 8x1.0mm, 9.52x1.0mm, 10x1.0mm, 12.7x1.2mm, 15.88x1.2mm, 16.0x1.0mm, 19.05x1.5mm.

(Our smallest od is 3.0mm, it is a very thin, capillary tube.

) - Item: parallel flow aluminum flat tube

- Alloy: 1050, 1060, 1070, 1100, 3003, 3103, 3102, 6061, 6063

- Temper: O, H112, H14, H16, H22, H24, T3, T4, T5, T6, T7, T8

- OD: 3.0-40MM for parallel flow aluminum flat tube

- Wall Thickness: ≥0.3MM for parallel flow aluminum flat tube

- Type: Coil, Straight, LWC, Pancake, or customized

- Leakage: NO, N2 gas keep inside for at least 24 hours for testing Application: - Refrigerator

- Airconditioner

- Evaporator

- Condenser

- Heat exchanger

- Freezer

- Car radiator

- Gas oven

- HVAC&R system - Standard: GB/T4437.1-2000, ASTM B241, ASTM B241M-1999

- Quality Certificate: ISO9001-2000, RoSH, CTI

- Tensile Strength: 68-90Mpa(1000series), 68-105Mpa(3000series)

- Elongation: >22%

- OEM Accepted: Yes

- Certification Available: Yes

- MOQ: 100kgs (1000/3000/6000series) Packing Details:

- 75x75x30cm carton - 6cartons=1wooden pallet

- 126cartons in 1x20”GP - 270catons in 1x40”GP - Production Capacity: 500tons/month

- Payment: L/C, T/T, D/P, D/A, Western Union

- Delivery: 3days (Sample), 6-12days (20GP/40GP/40HQ) Aluminium Multi-Port Extrusions (Microchannel Aluminum Tubes)

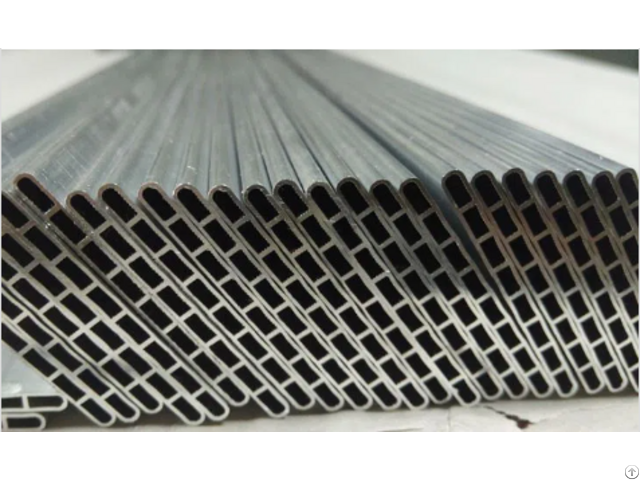

The aluminum Multi Port Extruded tubes are unique tubes developed with the highest manufacturing quality.

With their large internal surface area, they achieve more efficient heat transfer and hence are ideal for use in highly effective heat exchangers.

The aluminum Multi-Port Extrusion (MPE) or microchannel tube is a highly refined quality product and is characterized by the following properties:

- Low weight

- Excellent conductor of heat and electricity

- High corrosion resistance

- High recycling value

- High surface quality

- High-pressure resistance Other metals with similar qualities exist, but the aluminum used at Aluten Aluminium Precision Tubing combines these qualities in numerous ways.

This aluminum alloy has been utilized especially in the automotive heat exchanger industry but also makes its entry into the commercial and industrial air conditioning as well as refrigeration industries.

The Multi-Port Extruded profiles or microchannel tubes, with their large internal surface area, achieve more efficient heat transfer and are therefore ideal for use in highly effective heat exchangers.

Aluten Aluminium Precision Tubing is considering two kinds of Multi Port Extruded tubes with their respective applications:

1 - The aluminum micro multi-port extruded profile is primarily used for the following applications:

- Condensers/gas coolers

- Evaporators

- Oil coolers

- Radiators

- Heater cores

- CO2 applications 2 - The aluminum macro multi-port extruded profile is primarily used for the following applications:

- Picture

- Charge air coolers

- Oil coolers

- Fuel coolers

- Industrial coolers The Multi-Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.

Based on many years of experience, Aluten Aluminium Precision Tubing is in the position to be a competent, cooperative partner starting at the product development stage.

This often results in reduced development costs and a competitive end product with higher quality.

Our size and alloy product offer is customized to regional market requirements.
