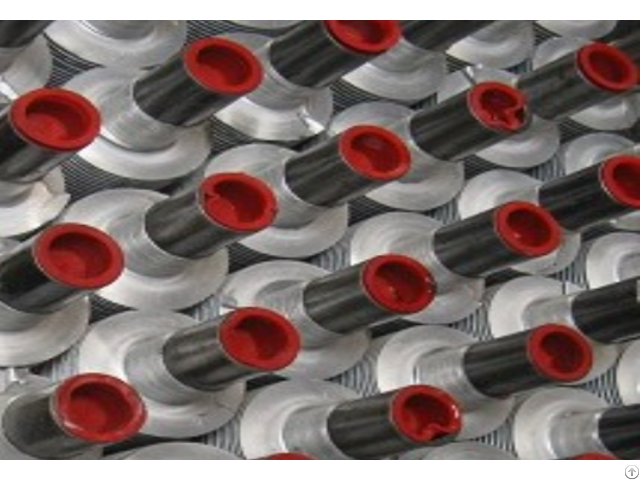

Aluminum Extruded Finned Tube - China

The aluminum fin is formed from bimetallic tubes, a base tube, and an aluminum muff tube.

The fins are formed on a cold rolling process from the wall thickness of the aluminum muff tube.

Extruded fin gives very good corrosion protection to the base tube, as the base tube is not visible to the atmosphere in between the fins.

The maximum operating temperature for the extruded finned tube is 300°C.

As a result, the tube's base is completely connected to the main tube.

Since these fins never break, deform, or loosen, their heating efficiency does not change over time.

Advantages:

- Corrosion resistance in the air is very high

- Easy cleaning

- Excellent efficiency

- More reliable capacity for thermal transfer Fin material is aluminum (standard form) and copper (occasionally).

The tube material is copper, copper-nickel, titanium, carbon steel, or stainless steel.

Extruded Fin Tube, Extruded Finned Tube, Aluminum Finned Tubes The extruded finned tubes are produced by compressing an aluminum tube, or sleeve, onto the base tube.

The bloom is exposed to very high pressures which essentially "grows" the fins into the final fin profiles.

This process manufactures an excellent strong joint with great resistance (fin stiffness) as well as exceptional heat transfer capabilities (longevity, temperature range).

The advantage of extruded fin tubes are full protection of bare tube against corrosion and the fin has high mechanical strength.

Extruded finned tubes provide the most stable performance over time as compared to the other fin types.

The fin is rolled from an outer aluminum tube by a process using pressure to create a rolled "pressure bond" between the liner tube and fins.

The aluminum fin material completely encloses the tube, except at the ends where a tube coating can be applied.

Primarily extruded finned tubes are used in high-temperature conditions and corrosive atmospheric conditions, such as operating temperatures less than 300°C or off-shore applications; heat pipes air to air heat exchangers for HVAC applications, air dehumidification in air treatment plants, energy recovery in the air exhaust system.

This kind of fin design is the least economical as compared to the other fin types; the main reason is due to the increased amount of aluminum used around 40% also the increased labor during the manufacturing.

However, this increased cost can be compensated if using lower-grade parent tube material.

- Max.

Working Temperature: 600°F

- Atmospheric Corrosion Resistance: OK

- Mechanical Resistance: Poor

- Fin Material: Copper, Aluminum

- Base Tube materials: Any material available, such as carbon steel tube, A179, A192, A210, stainless tube A269/A213 T5 T11 T22 304 316 Applications:

- Economizers

- Heat exchangers

- Marine boilers Extruded Fin Tube, Extruded Finned Tubes, and Aluminum Finned Tubes

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
