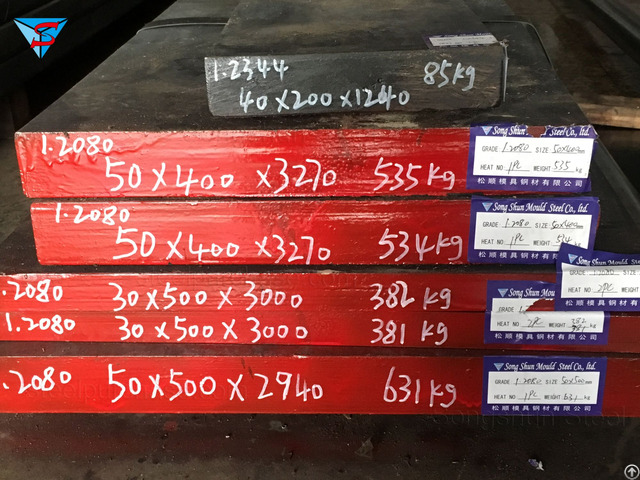

On Sale Cold Work Din 1 2080 Steel Plate - China

SKD1 Steel Application

1 - Highly stressed cutting 2 - Punching tools for thin sheet 3 - Blanking and forming dies 4 - Forming rolls 5 - Drawing and deep drawing tools 6 - Slitting Knife 7 - Stone processing tools 8 - Pressure pads 9 - Thermosetting plastic molding D3 Steel Round Bar Sheet Plate Heat Treatment

Heat Treatment SKD1 steel requires hardening and tempering to achieve maximum properties.

For maximum accuracy, the parts of SKD1 tool steel should be stress relieved after roughing operations.

Stress should be relieved at 648°C (1200°F) for one hour and cooled slowly.

Annealing Annealing of SKD1 steel needs to be done in a controlled atmosphere furnace.

D3 steels should be heated thoroughly to 871°C (1600°F) and cooled slowly at a rate of not more than -6°C (20°F) per hour, until the furnace is black.

Then the material should be removed and air cooled.

Tempering The SKD1 steel should be cooled to room temperature and should be tempered immediately.

The parts should be placed in the tempering furnace and increased slowly to the desired tempering temperature.

Tempering for 1 hour per inch of thickness is required.

Hardening SKD1 steel should be heated properly since it is very sensitive to overheating and if not heated maximum hardness cannot be achieved.

The work should be directly placed in a furnace preheated to 954°C (1750°F) and soaked for 20-25 minutes, plus 5 minutes per inch of thickness, and then oil-quenched to harden it.

SKD1 Related Steel Equivalent Property

D3 Steel

Annealing Hardness ≤ 255HB, Cold Drawing Hardness ≤ 269HB SKD1 Steel

Annealing Temperature830-880℃, Slow Cooling

Annealing Hardness ≤ 255HB

Quenching in 1030 ℃, Air Cooling, Tempering in 180 ℃ SKD1 Steel Round Bar Sheet Plate Supply

Round bar

Dia: 20-600mm; Length: <5800(fit 20ft container) >5800mm, 40ft container.

Surface: original black, peeled, machined/turned, polished/ grounded/milled/grinded Steel plate

thickness: 10-600mm; width: 30-810mm; length: same as above Surface: original black, machined/turned, polished/ grounded/milled/grinded Songshun specialized in Special Steel for almost 20 years.

We can supply mold steel, high speed steel, alloy steel, free cutting steel and etc.

Welcome your contact 24 hours a day!!!

+8618269260283

Songshun Tiktok: songshunsteelfacto ry

Songshun Facebook: Songshun Steel

Songshun YouTube: SONGSHUN STEEL

steelpurchase41404340
