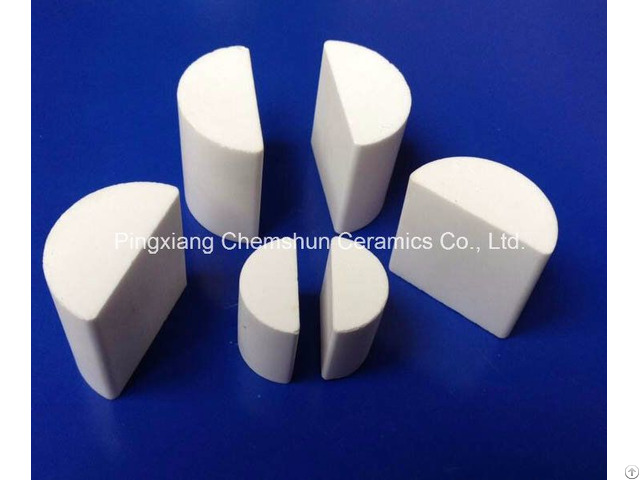

Wear Resistant Alumina Ceramic Half Cylinder Rod Suppliers And Manufacturers - China

>> Alumina half Cylinder, Ceramc half Cylinder, Ceramic rod introduction Chemshun alumina ceramic cylinder is mainly combined with high quality rubber to be used as wear protection material in mining industry, power plant, steel plant etc.

This ceramics rubber complex panel is a highly wear resistant surface of cylindrical alumina ceramic rods bound within a resilient rubber matrix.

The extremely hard ceramic elements provide unsurpassed resistance to wear, while the elastic properties of the rubber effectively dampen the impact forces.

Which is Used in heavy wear areas characterized by both impact & abrasion with small angle of impact where cost to life ratio is more important than low initial cost.

>> Alumina ceramic cylinder characters High hardness Superior abrasion resistance Corrosion and chemical resistance Light weight Can be vulcanized in all kinds of rubber panel or conveyor >> Alumina Ceramic cylinder Size available (diameter * Height ) : Pppular Sizes ( diameter * Height )

21*21 mm

20*20 mm

31.5*32 mm

40*15 mm

31*31 mm half cylinder

20*10 mm

21*21 half cylinder

more sizes and customized size acceptable >> Application industry mining industry Cement industry Coal handling industry Steel industry Port industry Power plant >> Technical data 1) : Chemical Composition:

Al2O3 SiO2 CaO MgO Na2O

92~93% 3~6% 1~1.6% 0.2~0.8% 0.1% Physical properties: Specific gravity (g/cc) >3.60

Apparent porosity (%) 0

Flexural Strength (20ºC, Mpa) 280

Compressive strength (20ºC, Mpa) 850

Rockwell hardness (HRA) 80

Vickers hardness (hv) 1050

Moh's hardness (scale) ≥9

Thermal Expansion (20-800ºC, x10-6/ºC) 8

Crystal Size (μm) 1.3~3.0 Packaging & Shipping > Delivery: 20-30 days working day for large quantity.

The shipment we will arrange as soon as possible.

Of course, if it is a custom products, the shipping time will delay.

> Sample: Usually by EMS, DHL, UPS, TNT, FedEx.

Anyway you like.

Bulk order: Usually by sea.

Payment: It can be through T/T, L/C at sight.

The specific terms determined according to the quantity of the goods, etc.

> Your inquiry related to our product & price will be replied within 24 hours.

Service:

Any requirment about chemshun Alumina Ceramic Square Mosaic Tile, Alumina Ceramic Cylinder, Wear Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service.

Export:

Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our

clients.

Company Contact:

• Posted By: PINGXIANG CHEMSHUN CERAMICS CO.,LTD

• Phone: 07996790781

• Address: Non-metal area of shangliuyuan,Economic Development zone,Pingxiang City ,Jiangxi Province ,P.R.China, PINGXIANG , JIANGXI , China

• Email:

• Website: https://www.chemshun.com

• Business Description: Our company is the area of alumina ceramic abrasion-resistant product in south China, thanks to its automated mechanism and quality control system, it has greatly increased the production capacity, now the annual capacity is up to 10000tons.
