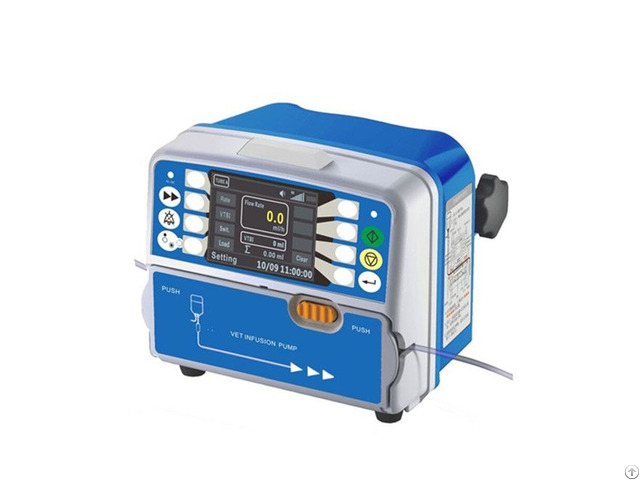

Wmv200e Veterinary Infusion Pump - China

WMV200E Veterinary Infusion Pump Veterinary Medical Devices Veterinary Medical Equipment Manufacturers Veterinary Infusion Pump Features

1 - History records

2 - Four operation modes: Rate mode, drip mode, time mode, body weight mode.

3 - Anti-reverse rotation detection

4 - Various visual and audible alarms

5 - Double CPU ensuring safe infusion

6 - Real time display

7 - 3 adjustable occlusion pressure settings Removable pump body, convenient for cleaning

8 - 12 months warranty WONDCON Veterinary Infusion Pump Specifications

Pumping Mechanism: Curvilinear peristaltic

Occlusion Sensitivity: low, middle and high

IV Set: Support a wide variety brands of infusion set including major manufacturers & selected local brands

Air-in-line Detection: Ultrasound sensor detection with four levels of air in line alarm adjustable

Flow Rate: 0.1~1200 ml/h

Power Supply, AC: 110/230 V (optional), 50-60 Hz, 25VA

Purge, Bolus Purge when pump stops, bolus when pump starts.

Bolus rate300 ~ 1200 ml/h, purge rate 600ml/h

Battery: Rechargeable lithium polymer battery, 7.4V, 2100mAh operating time: about 6 hours at 25ml/h Charging time: 10hs with power on, 3hs with power off.

Accuracy: Universal IV set: ±5%

Battery Life: 3 hours at 25 ml/h

VTBI: 0 ~ 9999 ml

Working Condition: Temperature: 5℃~40℃, relative humidity: 10~95%, air pressure: 86~106kPa

Infusion Mode: rate mode, drip mode, time mode, body weight mode

Relative Humidity: 30-75%

KVO Rate: 1 ~ 5 ml/h

Atmospheric Pressure: 860-1060 hpa

Alarms Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc.



Additional Features: Real-time shift totals, automatic power switching, mute button, purge, bolus, history log, system memory

Size&weight: 145×100×120 mm(length×width×height) 1.4kg

Safety Classification: ClassⅠ, type CF

Volume Infused: 0-36000ml

Water Proof Level: IPx3
