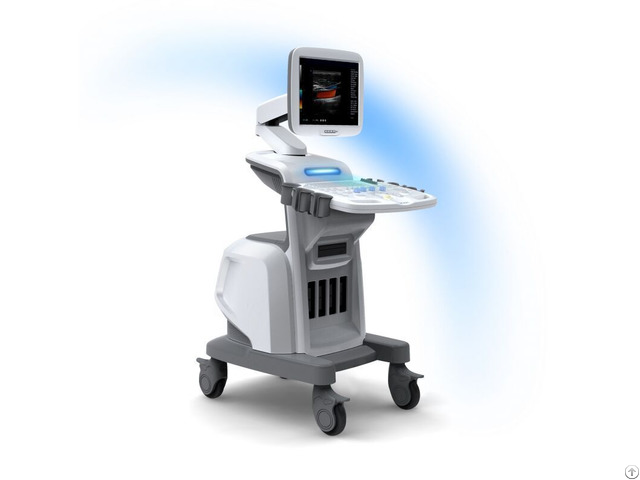

Canyearn C80 Full Digital Trolley Color Doppler Ultrasound Scanner - China

General Specification 1 - Main Features

Operationg Syetem PC Windows platform

Monitor 15 inch LED high-resolution monitor with rotatable arm Scanning Mode B, B/W, 2B, 4B, B/M, M, 3D/4D

Dynamic Range 0-150dB

Cine Loop Up to 1024 frames

Gain 0-100dB

TGC 8 segment

Scanning Depth Up to 300mm

Magnification ×2.0 - ×10

Probe Connector 4

Language Chinese/English

Matching Printer Laser/Vedio/Inkjet/Therma l printer

Peripheral Port USB, VGA, DICOM, RS232

Blood Flow Image B|D, B|C|D, B|C|M, CFM, B|C Double real time, CPA

Normal Measurement Distance, Area, Angle, Volume, Trace, Diam red(diameter stenosis), Area red(area stenosis), Cross curve, Parallel lines M General: ET, HR, Vel, Dis D General: ET, HR, Vel, ACC, Common, Trace

Professional Measurement Abdominal, Cardiology, Urology, Vascular, Early Obstetric, Later Obstetric, General, MSK, Pelvis Small organs(right/left thyroid)

Combination of Digital Ultrasonic Technology The multi-core intel processor

The wideband digital beam forming

The multi beam parallel processing

Trapezoid Imaging

Accurate blood flow imaging

Intelligence speckle suppression

Wide view imaging

Intelligence screen capture

One touch optimization

2 - Standard Configuration

Main system unit, 3.5MHz Convex probe, 7.5 MHz Linear Probe, Image storage unit, Specialist report, Image processing optimization, User manual and disc 3 - Optional Items

3D+4D, Biopsy Bracket, USB disk 4 - Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency ) 7.5 MHz Linear Probe (3.5-14MHz variable frequency ) 7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency) 7.5 MHz Rectal Probe(80 elements)

3D/4D Probe

Cardiac Probe 6 - Advanced Technologies

PC platform

One Touch Optimizer

Tissue Harmonic Imaging

3D/4D Imaging Reconstruction

DICOM 3.0 Packaging & Delivery

Packaging Details: Wooden Box Package

Net Weight: 80kg

Gross Weight: 89kg

Package Size: 1044*644*1245mm

Delivery Time: 5-10 working days Warranty

Two years for main unit (One year warranty for probes) Please let us know your specific request.

We would like to recommend you the most suitable model based on your information.
