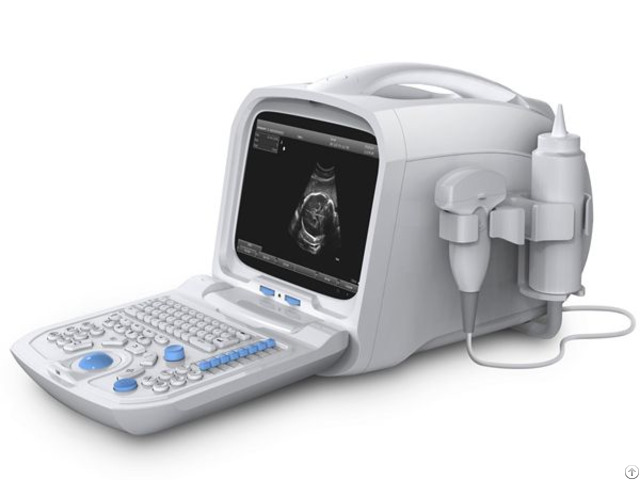

Canyearn A60 Full Digital Portable Ultrasonic Diagnostic System - China

General Specification 1 - Main Features

Operationg Syetem Window XP

Monitor 10.4 inch CRT monitor

Scanning Mode B, 2B, 4B, B/M, 3D image reconstruction

Keyboard Back-lit Silicone Keyboard (option)

Cine Loop Up to 256 frames

Gain 0-128dB

TGC 8 segment

Scanning Depth Up to 240mm

Dynamic Range 30-120dB

Pseudo-color 40, or customized

Body Marking 140

Focus 4

Magnification 0.8-6.0

Probe Connector 2

Language Chinese/English/Spanish

Matching Printer Laser/Vedio/Inkjet/Therma l printer

Peripheral Port USB, VGA, DICOM3.0, RS232, VIDEO OUT

Measurement & Calculation B-mode: Distance, Perimeter, Area, Volume, Angle, Histogram, Cross Section, Hip Joint Angle M-mode: Heart Rate, Time, Gradient

Image Processing Technologies THI, Pre-process, Post-process, Dynamic Range, Contrast, Frame Correlation, Average Line, Edge Enhancement, Black-white Change over, Gray-scale Transformation&Adjust ment, Brightness, Gamma Correction

2 - Applications

Abdominal(Liver, Gallbladder, Spleen, Kidney, Pancreas)

Gynecology(Uterus, Cervix Uterus, Endometrium, Ovary, Ovarian Follicle, Hydatoncus, Enclosed Mass) Obstetric(AC, BPD, CRL, FL, THD, GS, OFD, HUMERUS, TIDIA, ULNA, HC, TAD, APTD, FTA, AFI, Analytic report of fetus and the growth curve)

Cardiology(LV, LV Function, Aorta, Mitral, Valve)

Urology(Left Renal Volume, Right Renal Volume, RUV, Prostate kidney)

Small Parts(Ophthalmology, Thyroid, Jaw and Face) 3 - Standard Configuration

Main system unit, 3.5MHz Convex probe, User manual and disc 4 - Optional Items

Biopsy Bracket 5 - Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency ) 7.5 MHz Linear Probe (3.5-14MHz variable frequency ) 7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency) 7.5 MHz Rectal Probe(80 elements) 6 - Advanced Technologies

PC platform

Full Digital Ultrasonic Kernel Engine

Tissue Harmonic Imaging

3D Imaging Reconstruction

DICOM 3.0 Packaging & Delivery

Packaging Details: Box Package

Net Weight: 12kg

Gross Weight: 18kg

Package Size: 500*400*450mm

Delivery Time: 5-10 working days Warranty

Two years for main unit (One year warranty for probes) Please let us know your specific request.
