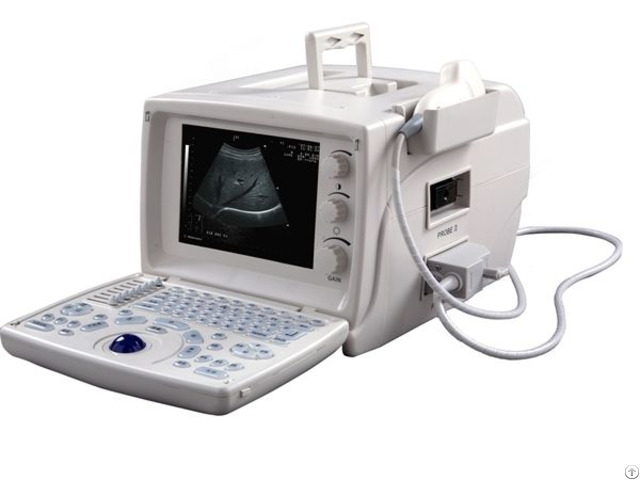

A40 Basic Portable Ultrasound Machine - China

1 - Main Features

Operationg Syetem No

Monitor 10.4 inch CRT monitor

Scanning Mode B, 2B, 4B, B/M

Keyboard Back-lit Silicone Keyboard (option)

Cine Loop Up to 256 frames

Gain 0-100dB

TGC 8 segment

Scanning Depth Up to 240mm

Dynamic Range 0-100dB

Pseudo-color 8 colors

Body Marking 30

Focus 4

Magnification 1.0, 1.2, 1.5, 2.0

Probe Connector 2

Language Chinese/English

Matching Printer Laser/Vedio/Inkjet/Therma l printer

Peripheral Port USB, VGA, DICOM3.0, RS232, VIDEO OUT

Measurement & Calculation Distance, C/A, HR and PW(obstetrics: BPD, CRL, OFD, TTD, FL, HC, AC) measurement Image Processing Dynamic Range, DSC, The line average turnover, Contrast, Edge Enhancement, Gray-scale Transformation&Adjust ment, Brightness, Gamma Correction

2 - Applications

Abdominal

Gynecology Obstetric(BPD, CRL, OFD, TTD, FL, HC, AC)

Cardiology

Urology 3 - Standard Configuration

Main system unit, 3.5MHz Convex probe, User manual and disc 4 - Optional Items

Biopsy Bracket, Ultrasonic Stands, USB Flash Disk 5 - Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency ) 7.5 MHz Linear Probe (3.5-14MHz variable frequency ) 7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency) 7.5 MHz Rectal Probe(80 elements) 6 - Advanced Technologies

User-friendly Interface

Dual Connector Support Various Probes

Back-lit Keyboard Packaging & Delivery

Packaging Details: Box Package

Net Weight: 12kg

Gross Weight: 18kg

Package Size: 500*400*450mm

Delivery Time: 5-10 working days Warranty

Two years for main unit (One year warranty for probes)
