Wireless Bladder Ultrasound Scanner - China

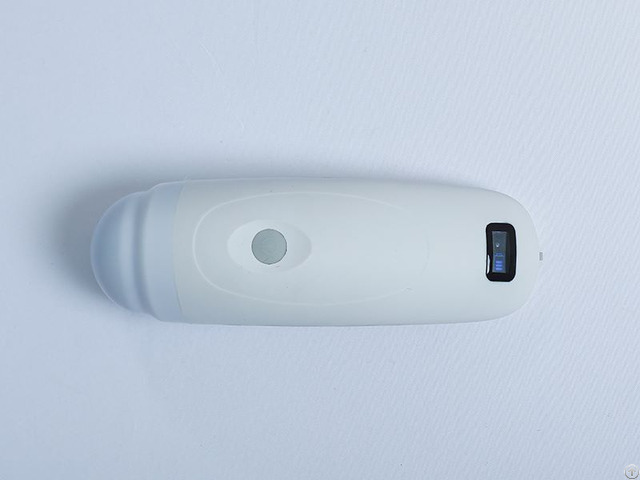

How it works The Sonostar wireless probe is a mini ultrasound scanner without a screen.

We minimize the components of a traditional ultrasound into a small circuit board built into the probe, and showing image in smart phone/tablet through Wifi transferring.

image can both show in screen and tablet.

Image transferring through internal wifi from probe, no need external Wifi signal.

Advantage - One probe, samll and lightweight, easy to carry - Connect tablet with probe by WiFi, easy operation - High accuracy (Erro less than 5%) - Fast scanning speed (only 2 seconds) - Large measurement range from 50ml to 2000ml - Electronic convex array 4D scanning with high channel number and array element configuration, with clear images and no mechanical scanning distortion - R20 probe with large scanning angle and coverage - High precision rotary encoder, precise positioning, never requiring calibration service - Advanced measurement algorithms, powerful bladder wall recognition technology, accurate edge detection technology, and high-precision probes make scanning measurement results more accurate: among them, the new algorithm is not affected by bladder shape and size, and there is no need to consider selectivity, age group, or the impact of special circumstances such as hysterectomy on bladder shape when using, making it more compatible with different bladder types, There will be no significant error in the measurement results when detecting small volume bladder or special shaped bladder, and the operation is also more convenient; AI and other technologies are used to identify bladder wall more accurately, including high recognition rate of bladder wall with air attached.

Even if the bladder is not full of urine, urine volume can be accurately measured.

In addition, AI function can also be used to identify bladder wall that is not good for edge hooking.

Take the abnormal map to the training set for training to solve the hard problem of consciousness of edge hooking - The scanning process has good real-time image, which can be better used for real-time visual monitoring of foley catheter insertion and removal, and better prevent the pain caused by blind insertion to patients Specifications 1 - Scan mode: array probe, 4D scan; 2 - Supporting system: Apple iOS; 3 - Measuring range: 50ml ~ 2000ml; 4 - Automatic measurement inaccuracies: <5%; 5 - Scan and process<2 seconds; 6 - Scanned image display frame: 15 frames / seconds; 7 - Case Storage: by tablet ; 8 - Printing: external wireless thermal printer; 9 - Battery: Built-in battery, charge one time can work on more than 200 patients; 10 - Power: by USB cable charge; 11 - Dimension: 170mm × 52mm × 55mm; 12 - Weight: 200g.

Company Contact:

• Posted By: Sonostar Technologies Co., Limited

• Phone: 18998466200

• Address: C Building, #27 Yayingshi Road, Science Town, Guangzhou, China, Guangzhou , Guangdong , China

• Email:

• Website: http://www.sonostarmed.com/

• Business Description: wireless ultrasound,palm ultrasound, portable ultrasound,labtop ultrasound

  SonoStar is a professional medical equipment company which includes medical equipment research and development, manufacturing, and sales, we committed to transforming the latest and most sophisticated scientific technology into practical and universal medical equipment, with the development goal of "becoming a world-class technology company, leading the world in technology, and highly recognized by customers".

  Our company culture is "pursuing innovation and differentiation, focusing on efficiency and efficient operation, creating value and benefiting mankind while achieving self-achievement, only doing win-win things without harming others".

  SonoStar has a strong product development and application team, and the main members of this team have rich industry work experience.

  We have formed a complete talent team covering fields such as acoustics, electronics, software, machinery, structural and appearance design, and clinical applications.

  We have strong scientific research strength as well as strong product planning and development capabilities.
