Vertical Ipl Shr Nd Yag Laser 3 In 1 System - China

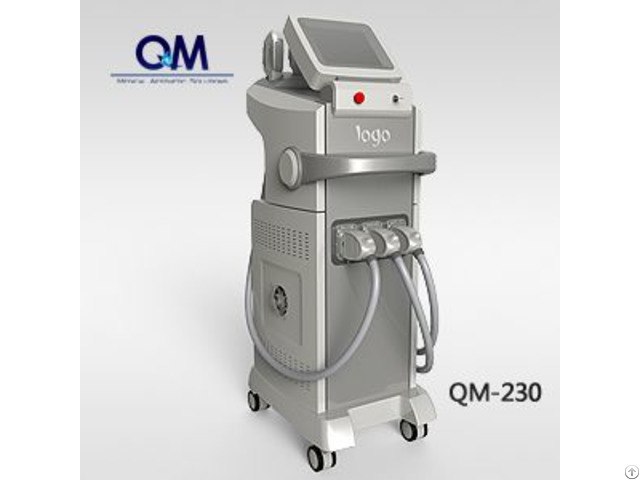

Model: Vertical QM-230 Applications:

*Hair removal.

*Skin rejuvenation, *Pigments removal

*Acnes Removal

*Vascular Removal

*Wrinkle removal.

*Skin lifting, wrinkle removal, skin tightening/rejuvenation(R F Function)

* Tattoos, Spots, Pigments, Otas Removal(Nd: YAG laser function) Working Principle: IPL

Intense Pulse Light(“IPL”) used broad spectrum of white light and with filters to marrow the spectrum to target specfic chromophores and structures.

IPL is a non-invasive skin treatment that emits powerful bursts of light energy to treat unwanted hair, sun damaged skin, and wrinkles, etc.

without damaging the surface of your skin, IPL systems use flash xenon lamps to emit micro pulses of light across a broad band of visible wavelengths.

IPL work by using particular wavelengths of light that is called by melanin which colors the hair and brown skin and black.

Since melanin absorbs light to be warm or hot, that the production of cells called melanocytes and melanin are denatured more produce more melanin.

By using gentle pulses of light momentarily to create heat, IPL can permanently disable hair follicles, preventing hair follicles` future growth.

The melanin in the hair (which gives it its colour) absorbs the light, which is then converted into heat.

This heat is transferred to the growth cells surrounding the root of the hair, disabling them.

By the IPL, pigments are Shattered and eliminated out of body via metabolism.

At the same time, IPL also helps increase collagen production, which rejuvenates the skin leading to a more youthful, radiant, bright and few fine wrinkle skin.

The light with long wavelength can pass through epidermis to the hair follicles deep underneath the skin.

At the targeted area, IPL occurs heating to destroy follicles and hair structures leading to permanent hair removal.

1064&532nm Q-Switched Working Theory

The special wavelength of YAG laser can penetrate skin of human body according to the theory and practice of "selective laser decomposing", the instrument uses the laser-wave to break Chromatophore into pieces which can be naturally absorbed by the body.

So that it achieves the purpose of de-freckling.

The Q-switched Nd: YAG laser radiates the light with a specific wavelength in high peak energy pulse; hence the light penetrates the tissue only for an ultra-short nanosecond.

The light is absorbed by the pigment tissue and results in an instantaneous blast, that is Light blasting principle.

The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and other parts will be split into tiny particles that can be engulfed by phagocytes and then metabolized by the lymphatic system.

The 1064nm wavelength will shatters and removes the black and blue pigments while the 523nm wavelength will shatters and removes red, pink, purple and brown pigments of the tattoo or other pigmentations without damaging the normal tissue.

RF Working theory:

The Radio Freqency wave permeates epidemis and take effect on the collagen-rich dermal tissue directly which makes water molecules in the skin move to and fro wildly.

The move produces controllable heat and results in contraction of collagen and generation of new collagen and dermal remodeling.

Energy is transmitted to the place between three electrodes; The current permeates target tissue and generate heat.

Specialty:

** Unique and Ergonomic design Handpiece.

** IPL handle with 5 filters for different treatments

**New Developed 10 inch User-friendly Interface

** Top-level Spare parts adopted, guarantee its golden quality and long-lasting lifetime! Technical Specifications: Item IPL+ RF+Nd: YAG Laser

Model QM-230

IPL Peak Power 3000W

500W(Nd: YAG laser)

Wavelength (Spectrum) 480/530/590/640/690-1200n m

1064nm, 532nm, 1320nm(Nd: YAG laser)

Energy Density (Fluence) IPL: 10-60J/cm2

Nd: YAG Laser: 1-1200mj

RF: -1-50W

Spot Size IPL: 15*50mm(standard), 12*30mm(option)

Nd: YAG laser: 2-8mm

RF: Different Size

Pulse Repetition Rate IPL: 0.5-2Hz

Nd: YAG Laser: 1-10Hz

Pulse Duration 1-15ms

Pulse Width(Nd: YAG laser) <10ns

Pulses 1-6

Single and Multi-pulses(Nd YAG Laser)

Cooling Continuous Crystal contact cooling(-5℃~1℃)+Air cooling

+Closed water circulation cooling

Stand-by Working 20 hours

Display 10" True Color LCD Touch Screen

Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz
