Three Colors In One Treatment Head For Anti Aging Wrinkle Relief Collagen Proliferation - China

Outstanding performance PDT device

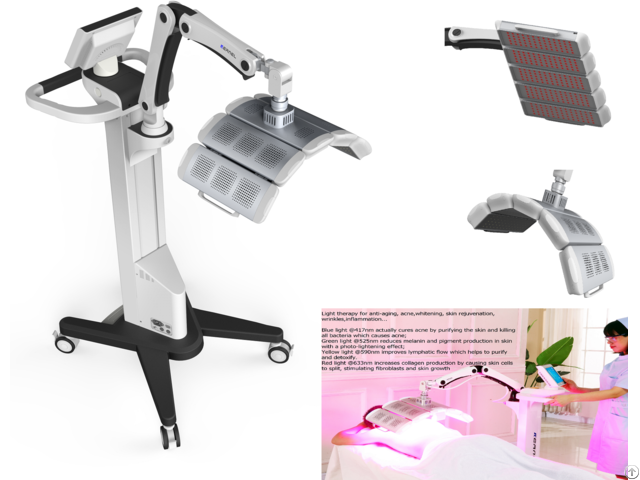

Kernel Photodynamic Therapy Model KN-7000A

★Trichromatic SMD-LED light source

★Dose/Time work mode

Intended use:

Applicable for inflammatory acne, eliminating inflammation, promoting wound healing Applicable places: Suitable for hospital dermatology, medical beauty department

Technical parameter

Work Voltage AC 220V­10%, 50Hz­2% or AC 110V­10%, 60Hz­2%

Rated Power 500VA

Working environment TEMP.

5~40¬C

Relative Moisture: ≤95%

Atmospheric pressure: 700hPa~1060hPa

Types of light LED: gene bioluminescence Output wavelength

red laser 635nm­10nm;

Blue-ray 415nm­10nm;

yellow: 590nm­10nm; IR 850mm­10nm;

Green 535nm­10nm

Safety Classification I class

Working mode Continuously Working

Display mode 8” color touching screen

Irradiation mode Continues irradiation, pulse irradiation

Pulse frequency Ⅰ：2Hz；Ⅱ：5Hz；� ��：10Hz

Irradiation area 850cm+/- ­10%

Working distance 6cm­1cm

Quantity of LED 1100 pcs

Timer function Equiped with timer, the error of timing doesn’t exceed ­2% of set value；

with the function of manual stopping exposure output

Time setting range: 0min~99min

Feature of LED photodynamic therapy

1-Suitbale for acne treatment, eliminating inflammation and promoting skin wound healing；

2-High power SMD LED light source in matrix array, high density, make higher intensityof irradiation, more uniform light spots； 3-Based on aerodynamic system design, combined with super thermal conductive material to ensure safe, reliable and stable use in harsh environment；

3-ingle color light source((Red light, Blue light, Yellow light; ), two colors light source((Red+Blue, Red+Yellow, Red+Infrared, Yellow+Green, Yellow+Infrared), three colors light source (Red+Blue+Yellow )integrated in one treatment head.

4-which with several wavelengths available for selection without the change of treatment head, meet the needs of clinical diversification programs；

5-Design with free stretching cantilever arm, give full consideration to ergonomic requirements, easy operation, to the maximum extent possible to meet a variety of clinical treatment environment needs；
