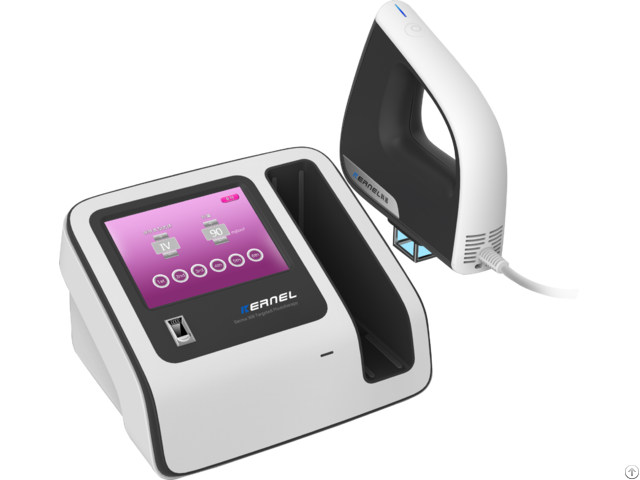

Targeted Home Use Portable Xecl 308 Nm Excimer Lamp For Vitiligo Psoriasis - China

The 308-nm excimer lamp represents the latest advance in the concept of selective phototherapy, for Psoriasis and vitiligo attracting most attention.

Induced rates of repigmentation seem to be higher than with narrowband UV-B.

Moreover, the selectivity of the treatment prevents irradiation of healthy skin and limits unsightly tanning of surrounding skin.

MANY STUDIES HAVE EVALUATED THIS NEW DEVICE IN A NUBER OF DERMATOLOGIC DISORDERS.

Advantages of the 308-nm excimer lamp The excimer lamp emits a wavelength of 308 nm produced using xenon and chlorine gases.

These technical characteristics provide with many advantages over conventional phototherapies.

High fluencies are possible, which can be useful in thick plaques of psoriasis.

It is also possible to selectively turn the beam of light and thus to treat the specific area involved, sparing healthy skin.

It is easier to reach areas that are usually difficult to treat, such as mucosa.

The use of a monochromatic wavelength of 308 nm gives photobiological effects theoretically superior to those provided by NB-UVB, Stimulation of melanocyte migration and proliferation from progenitor niches located in hair follicles is certainly the major factor.

This stimulation is due to the direct action of UV on melanocytes but also to the action of cytokines secreted by keratinocytes.

Applicable symptoms:

1 - Psoriasis

2 - Parapsoriasis

3 - Vitiligo

4 - Relapse eczema

5 - pityriasis rosea

6 - atopic dermatitis

7 - palmoplantar pustulosis

8 - alopecia areata

9 - chronic skin ulcer

10 - granulomafungoides

11 - prurituscutanea Feature:

 XeCl single wavelength excimer light source, pure light, high energy, less side effects, effectively reduce the treatment cycles；

 Good targeting, no harmless to normal skin, easy to treat the lesions where the traditional light hard to reach；

 The light port is designed with special filters to screen out the useless stray light, ensure safety and reliability as well as easy observation of operator；

 Treatment handle works with multi-specification-avail able shading sheet, realized a precise control of the irradiation range, suitable for different sizes of lesion treatment；

 Treatment handle and the machine body split design, to minimize the weight of handle to maximum, make the operation more flexible, light weight；

 8＂touch screen combined with humanized GUI design, make the operation more concise and fluent；

 Built-in minimum erythema dose(MED) test function, one machine for multiple use；

 Dose and time two kinds of work mode；

 Quick start, one key output, easy to operate；

 Built-in patient information management, convenient for operator to manage patients’ information and treatment records；

 External storage device for exporting and viewing user information；

 Small size, low cost of consumables, more suitable for home use；

The optional timing chip offer multiple modes of selling and cooperation.

(optional function) Technical Parameter:

Safety Classification Class I, B type for application section

Operation Mode Continuously Operation

Power Supply AC220V±10% 50Hz±2% (output：AC100-240V, 50/60Hz)

Rated Power 160VA

Working environment Temp：5～40℃ Transportation and storage environment Temp：-40～55℃ Relative Humidity：≤85% Relative Humidity：≤90% Atmospheric Pressure：700～1060hpa Atmospheric Pressure：500～1060hpa

Weight N.W.：5 kg Display Mode 8” color touch screen

Output Waveform XeCl excimer light

Irradiation Mode Hand-held irradiation

Irradiation Area 20cm2±1cm2

UVB Wavelength 290nm～320nm / output value: 308nm Irradiation intensity 20～200mW/cm2(Nominal Value：45 mW/cm2 ) Dose setting range 0~6000mJ/cm2 Time setting range 0~3min

Lift time of light source ≥500 hours
