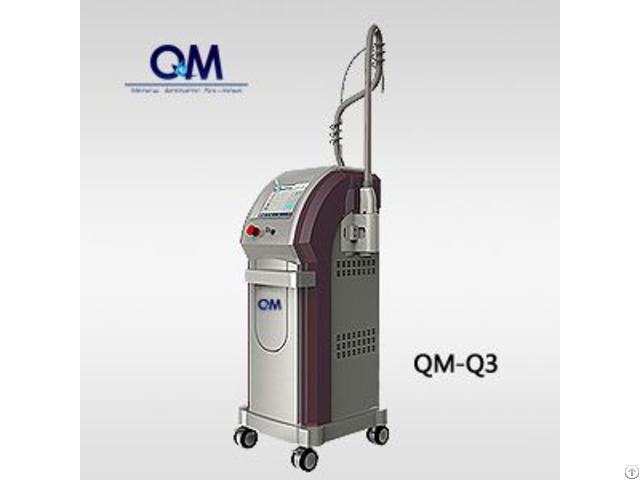

Professional Q Switched Nd Yag Laser Tattoo Removal Machine - China

Q-switched Nd: YAG Laser Model: QM-Q3 Applications: 1)1064nm: for treatment of tattoo removal, dermal pigmentation and treating certain pigmentary conditions such as Nevus of Ota and Hori’s Nevus.

(mainly for black and blue pigmentation)

2)532nm: for treatment of epidermal pigmentation such as freckles, solar lentigo, epidermal melasma, etc.

(mainly for red and brown pigmentation)

3)Black Carbon Head(NALR-1320nm): For deep cleaning, skin whitening, skin rejuvenation, shrink pores, acne treatment, wrinkle removal etc.

Working Theory: The special wavelength of YAG laser can penetrate skin of human body according to the theory and practice of "selective laser decomposing", the instrument uses the laser-wave to break Chromatophore into pieces which can be naturally absorbed by the body.

So that it achieves the purpose of de-freckling.

The Q-switched Nd: YAG laser radiates the light with a specific wavelength in high peak energy pulse; hence the light penetrates the tissue only for an ultra-short nanosecond.

The light is absorbed by the pigment tissue and results in an instantaneous blast, that is Light blasting principle.

The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and other parts will be split into tiny particles that can be engulfed by phagocytes and then metabolized by the lymphatic system.

The 1064nm wavelength will shatters and removes the black and blue pigments while the 532nm wavelength will shatters and removes red, pink, purple and brown pigments of the tattoo or other pigmentations without damaging the normal tissue Specialty: 1.2016 Latest Design

2 - Patented Handpiece, very light then achieve extremely comfortable for operator

3 - No pain, no burn and even no aneasthesia!

4 - The laser lamp is imported from America.

lifetime can reach 1000, 000 shots!

5 - Great Innerstructurer design which achieve the perfect working performance\

6.8.4 inch TFT true color touch screen, Friendly use Operation Software Technical Specifications: Wavelength 1064nm&532nm&1320 nm

Pulse energy: 1-1000mj

Repetition Rate 1-10Hz

Operation Interface 8.4” Dual color LCD screen

YAG Bar Size ￠ 7

power 500w

Aiming Beam Guided by red light

Cooling Systems Air Cooling & Close Water Circulation

Stand-by Working Continuously stand-by working for 12 hours

Electrical Requirements 100/110V, 50~60HZ or 230~260V, 50~60HZ

Dimension 68cm*48cm*70cm(L*W*H)

Net Weight 40kgs
