Professional Eo Q Switched Nd Yag Laser 1064nm 532nm 1320nm - China

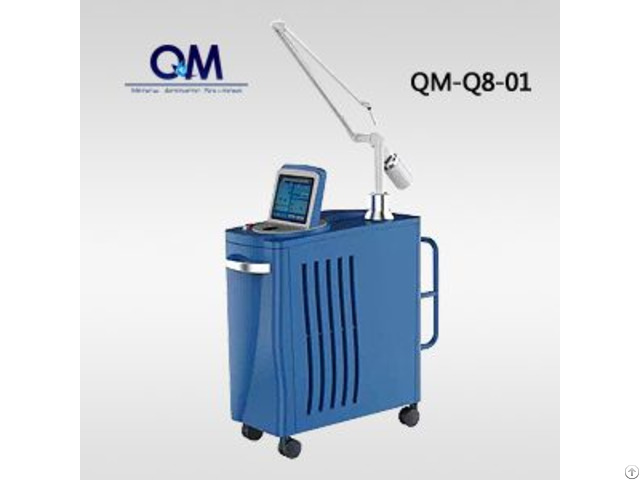

EO Q-switched Nd: YAG Laser

Model: QM-Q8 Applications: 1 - Tattoos Removal

2 - Pigmented lesions: Sunspot, Ota's nevus, melasma, Age spot, CALMS, Nevus, Zygomatices etc.

3 - Laserfacial: skin rejuvenation and Resun facing, smooth out fine wrinkles and expressionlines, reduce pigmention such as sun spots and freckles, frim up skin tone.

Working Theory: Therapy of epidermis and dermis pigmentation:

Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass.

Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.

Therapy of the dilatation of capillary vessel:

Utilizing the heat effect of the Nd: Yag Laser, the laser is absorbed by the hemachrome in the capillary vessel, then the capillary vessel become blocked and disappear.

Therapy of Skin rejuvenation/whitening:

By medical grade nano charcoal powder applied to the face, after it penetrate the pores, and then the laser wavelength of 1064 toner particles blast, which shattered the dirt and epidermal keratinocytes; it produces heat energy transfer to the dermis can fully stimulate the renewal and vitality of skin cells, stimulate collagen and elastic fiber repair, using the body's natural repair function, start the new collagen orderly deposition and arranged so as to achieve instant eliminate wrinkles, shrink pores, smooth skin, the skin to restore the original elasticity effect.

Specialty: * KOREA import 7 jointed arm delivery system, make it easy for longtime treatment.

* Red diode laser beam point, find the right treatment area exactly.

* Motor drivedauto-switching with 1064/ 532nm wavelength change.

* Spot size can be adjusted through focus ajdustment lens 1-8mm

* High power built in water cooling system make the machine can be continues working * Operation and parameter adjustment with 10.4 inch color TFT touch screen.

Technical Specifications: Laser type ND YAG Q-switch laser

Wavelength double wavelength 1064nm, 532nm

Operation interface 10.4 inch TFT color touch Screen

Single-pulse Energy 1500mJ (1064nm); 800mJ (532nm)

Power 2000W

Width of pulses 8ns±2ns

Frequency 1-10Hz

Diameter of spot 1-10mm adjustable

Beam of light transmission 7 articular-arm of light guide transmitting, transmission power is more than 75%

Indicator of aiming light red semiconductor aiming light, wavelength 650-670nm

Cooling manner Closed-off water circulation + air

Program language English

N.W. 60kgs

G.W. 85kg

Packing Aluminum alloy box

Voltage 220V / 110V
