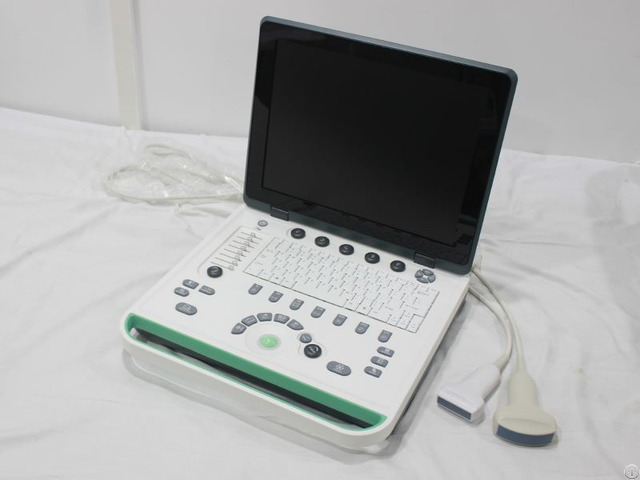

Portable Ultrasound Equipment Color Doppler - China

Equipment Instructions

For examinations of abdomen, heart, gynecology, obstetrics, urology, small organs, pediatrics, blood vessels, etc.

Main technical parameters and functions

-Technology platform: WINDOWS platform

-Physical channels ≥ 32, Probe array elements ≥ 80

-Machine size: 400mm(W) x 394mm(H) x thickness 172mm

-Weight: Net Weight≤7.5kg (with one probe≤8.2kg, with two probes≤8.9kg)

-Packing size: 500mm(L) x 500mm(W) x 430mm(H)

-Display: 15 inch LCD high resolution

-Fully digital imaging technology: multi-beam synthesis, real-time point-by-point dynamic focus imaging, pulse inverse harmonic composite imaging, spatial composite, image enhancement and noise reduction

-Imaging modes: B mode, M mode, Color (color Doppler) mode, PW (pulse Doppler) mode

-Image display mode: B, double frame, 4 frame, B+M, M, B+Color, B+PW, PW, B+Color+PW, B/BC dual real-time-Supported probes: 3C6C convex array probe, L4C/8L4C/10L25C linear array probe, 6E1C transvaginal probe, 6C15C/3C20C micro-convex probe, 6I7C rectal probe;

-Probe frequency: 4.3-12.0MHz

-Movie playback: 500-1500 frames;

-Image magnification: real-time scanning (B, B+C, 2B, 4B), status: 10 times

-Image storage: support JPG image format and AVI movie format, -Support local storage;

-Support DICOM, comply with DICOM3.0 standard

-Built-in workstation: support large-capacity hard disk (★≥128GB), support patient data retrieval and browsing

-Volume calculation software package: abdomen, gynecology, obstetrics, small organs, heart, blood vessels, etc.

-Battery: Built-in large-capacity lithium battery, continuous working time ≥ 1.5 hours

-Image parameters

B mode

1 - Grayscale mapping: ≥15 files 2 - Frame related: ≥8 files 3 - Edge enhancement: ≥15 files

4 - Image enhancement: ≥5 files 5 - Space composite: switch adjustable

6 - Image flip: up and down, left and right 7 - Maximum scanning depth: ≥250mm

M mode

1 - Sweep Sleep: ≥4 levels adjustable 2 - Line Average: ≥5 files

PW mode

1 - SV size/position: SV size 1.0–8.0mm adjustable 2 - PRF: ≥5 files 3 - Sweep Sleep: ≥8 levels adjustable 4 - Correction angle: 360 degrees 5 - Spectrogram flip: switch adjustable 6 - Doppler sound: ≥20 files

Color/PDI mode

1 - Wall filter ≥ 6 gears adjustable 2 - Color afterglow: 2DB---80DB

3 - Color priority: 1-255 4 - Pulse frequency: ≥ 8 gears adjustable

-Measurement and calculation

1 - B/C mode routine measurement: distance, area, circumference, volume, angle, area ratio, distance ratio

2 - Routine measurement in M mode: time, slope, heart rate, distance 3 - Routine measurement in Doppler mode: heart rate, resistance index, pulsatility index, time, blood flow, peak blood flow 4 - Obstetrics application measurement: double parietal diameter, femur length, head circumference, abdominal circumference, head arm diameter, gestational sac length, first stage, second stage, general obstetrics, amniotic fluid index, routine

5 - Gynecological B-mode application measurement 6 - Heart B, M mode application measurement

7 - Vascular PW mode application measurement 8 - Small organ B mode application measurement

9 - Urinary B-mode application measurement 10 - Pediatric B mode application measurement

11 - Abdominal B mode application measurement Standard configuration and optional accessories

Standard Configuration: 1 x full digital host (128G hard disk built in the host); 1 x 3C6C convex array probe; 1 x 7L4C linear array probe; 1 x user manual;1 x power cable;

Optional accessories: 6E1C transvaginal probe; 6C15C micro-convex probe; 6I7C rectal probe; USB report printer; black and white video printer; color video printer; puncture frame; trolley;
