Pdt Device For Facial Rejuvination Skin Disorder Anti Aging Wrikle Reduction Acne Treatment - China

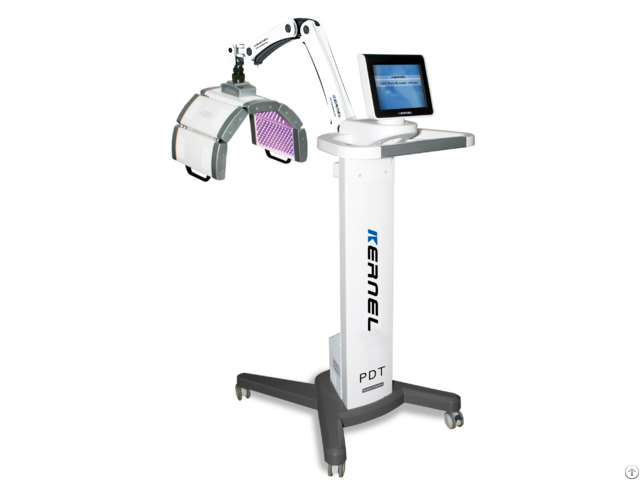

This Medical CE marked PDT Device, with Model: 7000A, enable you to perform various treatment with the specific wavelength.

To address needs that are specific to each skin type and condition By using the cell-specific wavelength during treatment, the photons can access targeted photoreceptors, inducing a therapeutic photo response that improves blemishes, pigmentation, redness and wrinkles.

Outstanding performance PDT device

Kernel Photodynamic Therapy Model KN-7000A Trichromatic SMD-LED light source Dose/Time work mode Intended use: Applicable for inflammatory acne, eliminating inflammation, promoting wound healing Applicable places: Suitable for hospital dermatology, medical beauty department Technical parameter Work Voltage AC 220V­10%, 50Hz­2% or AC 110V­10%, 60Hz­2% Rated Power 500VA Working environment TEMP.

5~40¬C Relative Moisture: ≤95% Atmospheric pressure: 700hPa~1060hPa Types of light LED: gene bioluminescence Output wavelength red laser 635nm +/-­10nm; Blue-ray 415nm­10nm;

yellow: 590nm­10nm; IR 850mm­10nm; Green 535nm­10nm Safety Classification I class

Working mode Continuously Working Display mode 8” color touching screen Irradiation mode Continues irradiation, pulse irradiation Pulse frequency Ⅰ：2Hz；Ⅱ：5Hz；� ��：10Hz Irradiation area 800cm+/- ­10% Working distance 6cm­1cm Quantity of LED 1820 pcs Timer function Equiped with timer, the error of timing doesn’t exceed ­2% of set value； with the function of manual stopping exposure output Time setting range: 0min~99min Feature of LED photodynamic therapy 1-Suitbale for acne treatment, eliminating inflammation and promoting skin wound healing； 2-High power LED light source in matrix array, high density, make higher intensityof irradiation, more uniform light spots； 3-Based on aerodynamic system design, combined with super thermal conductive material to ensure safe, reliable and stable use in harsh environment； 4-ingle color light source((Red light, Blue light, Yellow light; ), two colors light source((Red+Blue, Red+Yellow, Red+Infrared, Yellow+Green, Yellow+Infrared) integrated in one treatment head.

5-which with several wavelengths available for selection without the change of treatment head, meet the needs of clinical diversification programs； 6-Design with free stretching cantilever arm, give full consideration to ergonomic requirements, easy operation, to the maximum extent possible to meet a variety of clinical treatment environment needs；

Company Contact:

• Posted By: Kernel Medical Equipment Co., Ltd.

• Phone: +86-15351630004

• Address: No.2, Dongshan Road, Kernel Building, Economic Development Zone, Xuzhou , jiangsu , China

• Email:

• Business Description: Kernel Medical is the first company in china to get the FDA and CE certificate products.

  Designing /manufacturing/selling of medical devices for more than 20 years; main products are for dermatologic disorders, that is, UV phototherapy device for psoriasis, vitiligo, dermatitis, eczema, and other diseases;

  Second line is the photodynamic products for aesthetics;

  Third is the Hair loss therapy, for alopecia areata, and balding problems;

  The fourth is the gyaenecology products, the digital colposcope and optical products.
